Same model may have multiple batches, images only for reference.

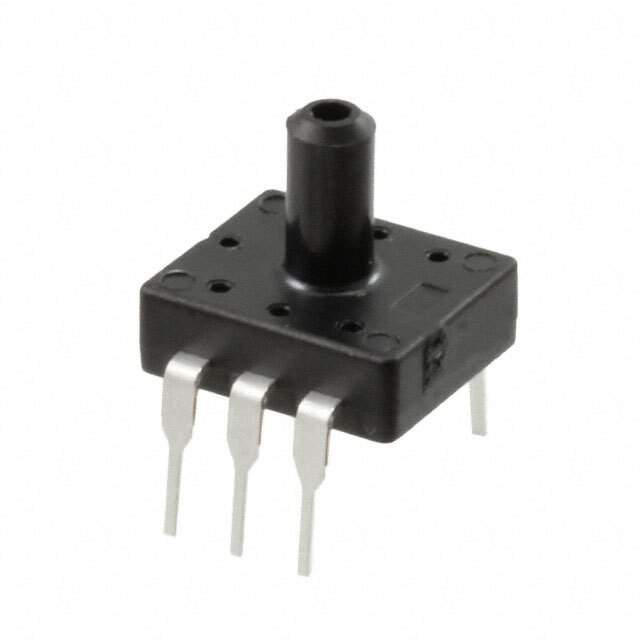

ADP1132 Real Image
Same model may have multiple batches, images only for reference.

ADP1132

Part No ADP1132
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description ADP PRESSURE SENSOR / Pressure Sensor 0kPa to 49kPa Gage 6-Pin PDIP
Datasheet
ADP1132 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Electronic Components
Series PF
Part Status Obsolete(EOL)
Pressure Type Vented Gauge
Operating Pressure 7.11 PSI (49 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.3%
Operating Supply Voltage 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style Through Hole
Maximum Pressure 14.21 PSI (98 kPa)
Operating Temperature Range -20°C ~ 100°C
Package 6-DIP Module
Win Source Part Number 772804-ADP1132
Popularity Medium
Supply and Demand Status Limited
Family Name ADP1132
Introduction Date November 27, 2002
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ADP1132 CAD Model

Description

The Panasonic Electronic Components ADP1132 is a temperature compensated Wheatstone bridge output type sensor with an accuracy of ±0.3%.

  • Mounting Type: Through-hole
  • Operating Temperature Range: -20°C to 100°C
  • Port Size: Male 0.12” (3mm) tube
  • Pressure Type: Vented gauge
  • Operating Pressure: 7.11 PSI (49 kPa)
  • Maximum Pressure: 14.21 PSI (98 kPa)
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Alternative Parts (Cross-Reference): 2SMPP-02, NBPLLNS001PGUNV, NBPLLNN005PGUNV, NBPLPNN001PGUNV
