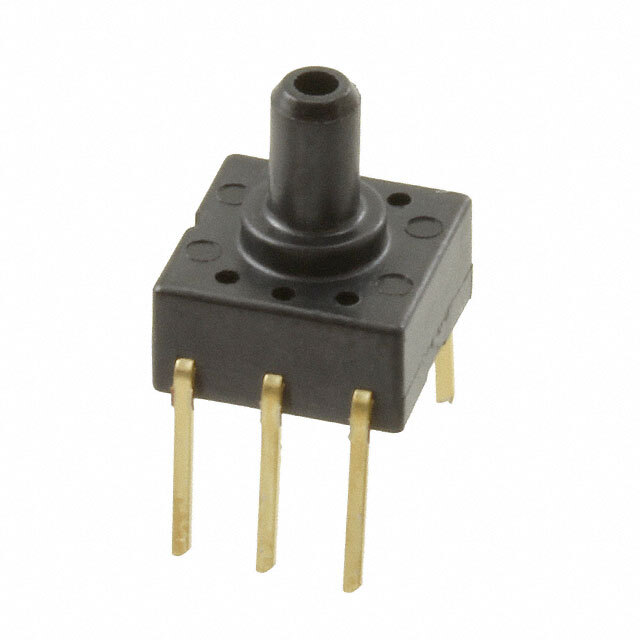

Same model may have multiple batches, images only for reference.
ADP5201 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADP5201

Part No ADP5201
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 14.5PSIG 0.12\
Datasheet
ADP5201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Last Time Buy
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure ±14.5PSI (±100kPa)
Output Type Wheatstone Bridge
Output 0 V ~ 4.5 V
Accuracy ±1.5%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Maximum Pressure ±29.01PSI (±200kPa)
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Case / Package 6-SMD Module
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1600114-ADP5201
Ultra Librarian 3D Model Ultra Librarian ADP5201 CAD Model

Description

N
