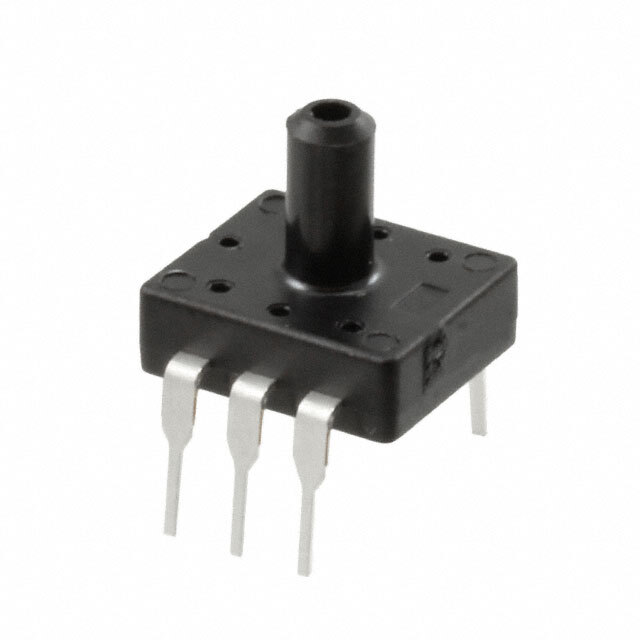

Same model may have multiple batches, images only for reference.
ADP5250 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADP5250

Part No ADP5250
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 29.01PSIG 0.12\
Datasheet
ADP5250 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Last Time Buy
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 29.01PSI (200kPa)
Output Type Wheatstone Bridge
Output 0 V ~ 4.5 V
Accuracy ±1.5%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 58.02PSI (400kPa)
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Case / Package 6-SMD Module
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1600117-ADP5250
Ultra Librarian 3D Model Ultra Librarian ADP5250 CAD Model

Description

N
