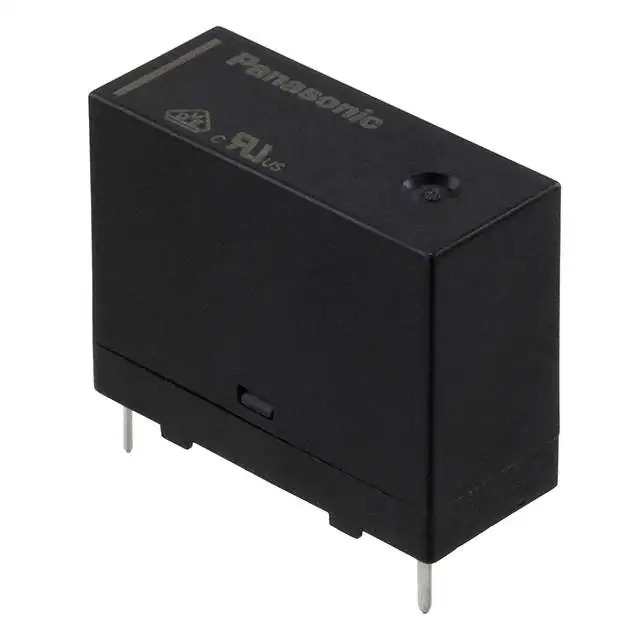

ADW1103HLW Panasonic
Same model may have multiple batches, images only for reference.

ADW1103HLW

Part No ADW1103HLW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DW-H
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 66.7 mA
Coil Type Latching, Single Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 2.4 VDC
Must Release Voltage -
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 45 Ohms
Base Product Number ADW1103
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1355496-ADW1103HLW
Ultra Librarian 3D Model Ultra Librarian ADW1103HLW CAD Model

Description

The ADW1103HLW is a power relay from the DW-H series by Panasonic Electric Works.

  • Mounting Type: Through-Hole
  • Package: Tray
  • Temperature Range: -40°C to 85°C
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 3VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Switching Voltage: 277VAC maximum
  • Coil Current: 66.7mA
  • Relay Type: Latching, Single Coil
  • Seal Rating: Sealed-Flux
  • Coil Insulation: Class F
  • Operate Time: 15ms
  • Release Time: 15ms
