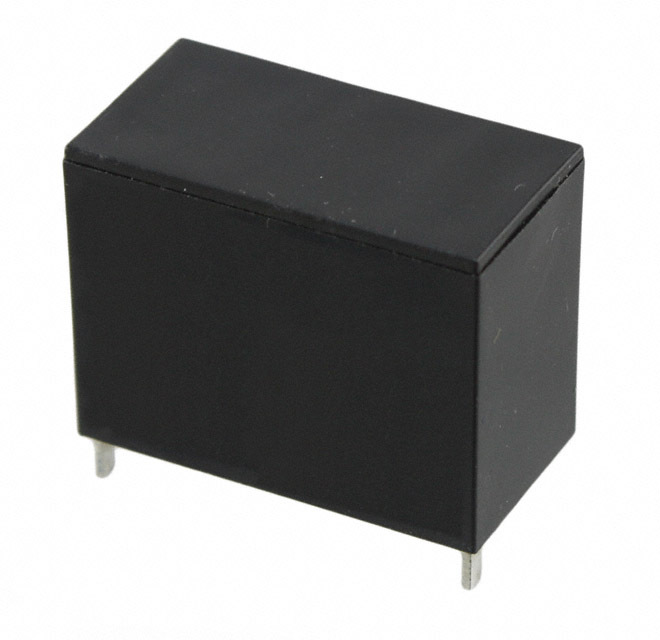

Same model may have multiple batches, images only for reference.
ADW1109HTW Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADW1109HTW

Part No ADW1109HTW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Load - Max Switching 4432VA
Coil Current 22.2 mA
Coil Type Latching, Single Coil
Features IEC Compliant
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 7.2 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CQC, cURus, VDE
Relay Type General Purpose
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1548861-ADW1109HTW
Ultra Librarian 3D Model Ultra Librarian ADW1109HTW CAD Model
