Same model may have multiple batches, images only for reference.

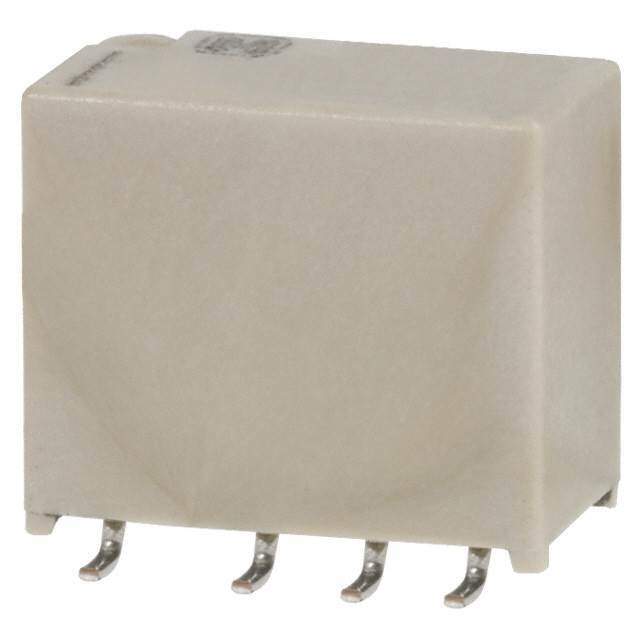

AGN200S4H Real Image
Same model may have multiple batches, images only for reference.

AGN200S4H

Part No AGN200S4H
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 31mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 3.38 VDC
Turn Off Voltage (Min) 0.45 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 145 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 077964-AGN200S4H
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Security, Test & Measurement, Consumer Electronics, Audio, Imaging, Video & Vision
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian AGN200S4H CAD Model

Description

AGN200S4H Relay

The AGN200S4H relay offers robust performance with enhanced switching capabilities. It's suitable for high-frequency operations due to its advanced electrical characteristics.

Features and Benefits

  • High Switching Speed: Optimized for fast operational cycles.
  • Wide Operating Temperature Range: Suitable for diverse environmental conditions.
  • Energy Efficient: Low power usage while maintaining high performance.

Applications

  • Automotive Signal Control
  • Consumer Electronics
  • Renewable Energy Systems
