Same model may have multiple batches, images only for reference.

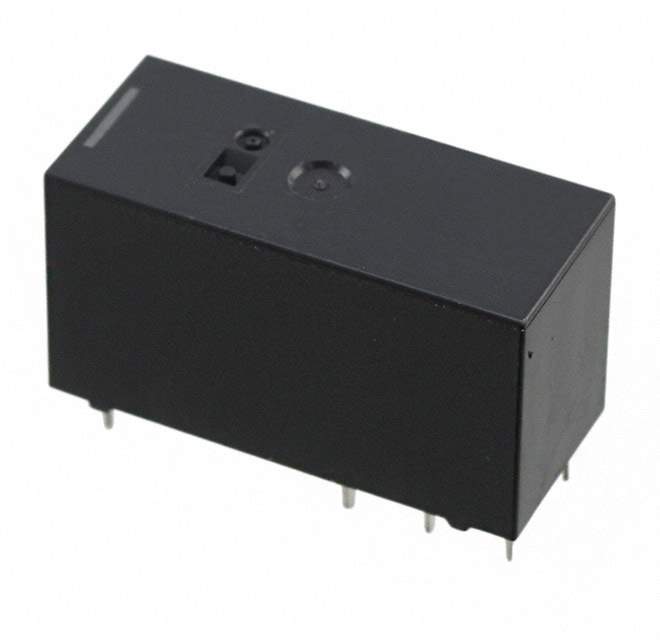

ALZ11B12W Real Image
Same model may have multiple batches, images only for reference.

ALZ11B12W

Part No ALZ11B12W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V / Power Relay 12VDC 16A SPDT(28.8mm 12.5mm 15.7mm) THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series ALZ
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Maximum) 8.4 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 400 mW
Coil Resistance 360 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 768418-ALZ11B12W
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name ALZ
Introduction Date April 13, 2000
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ALZ11B12W CAD Model

Description

The Panasonic Electric Works ALZ11B12W relay is a general-purpose, non-latching type relay with a PC pin termination style and a through-hole mounting style.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver tin oxide (AgSnO)
  • Insulation Class: B
  • Sealed: Flux protection
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Contact Rating (Current): 16A
  • Switching Voltage: 440VAC max
  • Operate Time: 15ms
  • Release Time: 5ms
  • Series: ALZ
