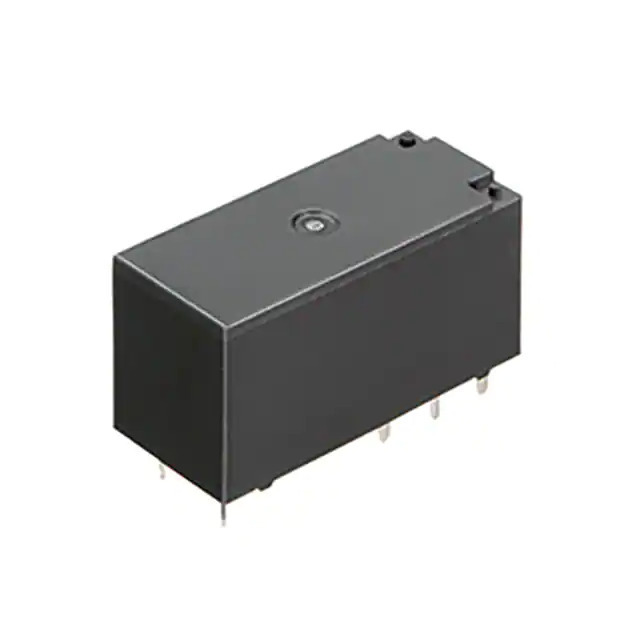

ALZN5B12W Panasonic
Same model may have multiple batches, images only for reference.

ALZN5B12W

Part No ALZN5B12W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZN
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALZN5B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1356623-ALZN5B12W
Ultra Librarian 3D Model Ultra Librarian ALZN5B12W CAD Model

Description

The Panasonic Electric Works ALZN series power relay, part number 1356623-ALZN5B12W, is a high-quality relay designed for power applications.

  • Coil Voltage: 12VDC
  • Contact Rating: 16A
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 440VAC
  • Mounting Type: Through Hole
  • Seal: Sealed for flux protection
  • Must Operate Voltage: 8.4VDC
  • Must Release Voltage: 1.2VDC
  • Operating Time: 15ms
  • Release Time: 5ms
  • Product Status: Active
