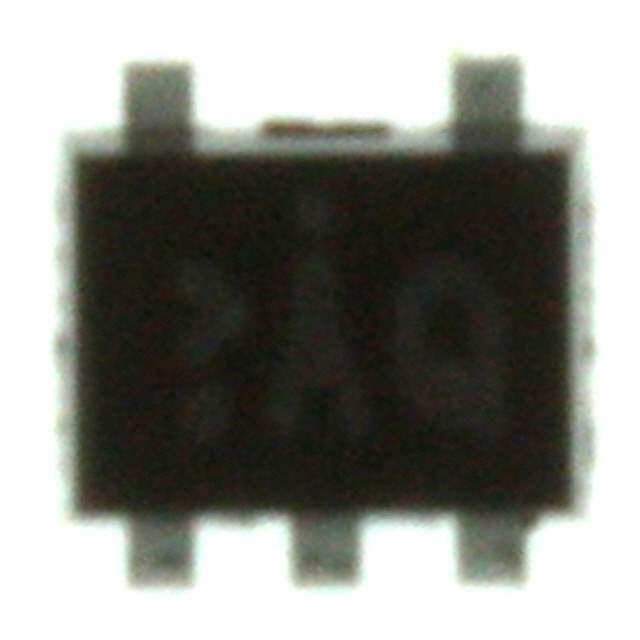

AN1433SSMTXL Real Image
Same model may have multiple batches, images only for reference.

AN1433SSMTXL

Part No AN1433SSMTXL
Manufacturer Panasonic
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT ADJ SSMINI-5D / HIGH ACCURACY, VARIABLE OUTPUT, LOW VOLTAGE OPERATION SHUNT REGULATOR
Datasheet
AN1433SSMTXL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Panasonic Electronic Components
Packaging Reel package
Part Status Obsolete(EOL)
Reference Type Shunt
Output Type Adjustable
Output Voltage 1.25V
Output Voltage MAX 14V
Output Current 20mA
Tolerance ±1%
Current - Cathode 200μA
Operating Temperature Range -30°C ~ 85°C (TA)
Mounting SMD
Package SOT-665
Manufacturer Package SSMini-5D
Win Source Part Number 768508-AN1433SSMTXL
Popularity Medium
Supply and Demand Status Balance
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AN1433SSMTXL CAD Model

Description

The Panasonic Electronic Components AN1433SSMTXL is an adjustable shunt voltage reference with an output voltage of 1.25V and a maximum output voltage of 14V.

  • Output Voltage: 1.25V
  • Maximum Output Voltage: 14V
  • Tolerance: ±1%
  • Output Current: 20mA
  • Current Cathode: 200μA
  • Noise (0.1Hz to 10Hz): None
  • Package: SOT-665
  • Operating Temperature: -30°C to 85°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Series: AN1433
