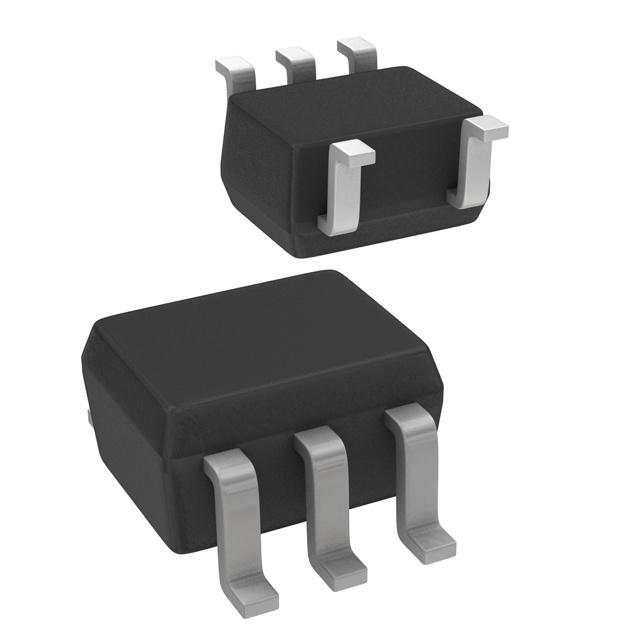

AN48810B-NL Panasonic
Same model may have multiple batches, images only for reference.

AN48810B-NL

Part No AN48810B-NL
Manufacturer Panasonic
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOLAR SMINI-5
Datasheet
AN48810B-NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 6mT Trip, 0.5mT Release
Testing Conditions 25°C
Supply Voltage - Operating 2.5 V to 3.5 V
Current - Supply (Max) 15μA
Current - Output (Max) 15mA
Output Type Push-Pull
Temperature Range - Operating -20°C to 75°C (TA)
Case / Package SMINI-5DA
Win Source Part Number 009700-AN48810B-NL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AN48810B-NL CAD Model

Description

AN48810B-NL Advanced Sensor

The AN48810B-NL is a cutting-edge sensor module that offers superior performance for precision applications. Its advanced features make it suitable for sophisticated technology projects.

Features & Benefits:

  • Enhanced precision and response time
  • Low idle power usage
  • Rugged build for extreme conditions
  • Easy to integrate into current systems

Applications:

  • Medical equipment
  • Automated guided vehicles
  • Smart appliances
  • Test and measurement systems

AN48810B-NL stands out for its ability to withstand extreme conditions while providing accurate readings, making it a formidable choice for high-precision needs.
