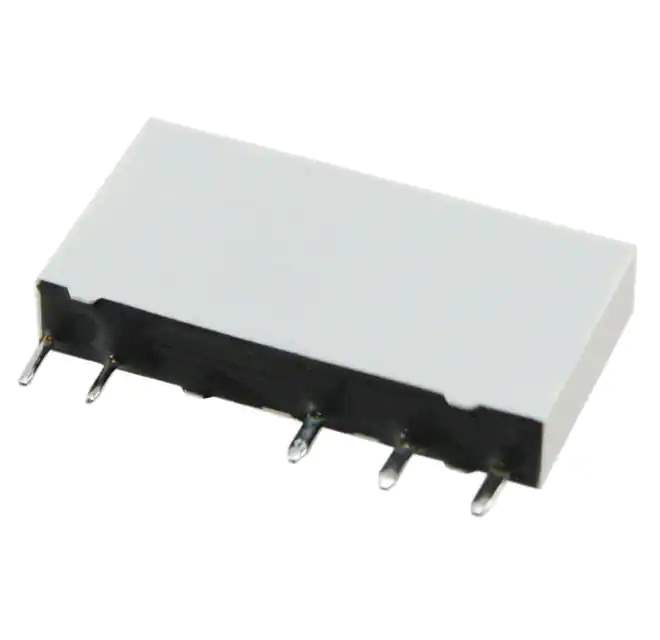

APF30224 Real Image
Same model may have multiple batches, images only for reference.

APF30224

Part No APF30224
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series APF
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 7.1 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 3.39 kOhms
Base Product Number APF302
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 847896-APF30224
Ultra Librarian 3D Model Ultra Librarian APF30224 CAD Model

Description

The APF series is a power relay with a coil voltage of 24VDC from Panasonic.

  • Contact Form: SPDT (1 Form C).
  • Contact Rating: 6A.
  • Application: General-purpose.
  • Mounting Type: Through-hole.
  • Operate Time: 8ms.
  • Release Time: 4ms.
  • Temperature Range: -40°C to 85°C.
  • Standard Package: 20 pcs.
  • Common Usage: Power management systems.
