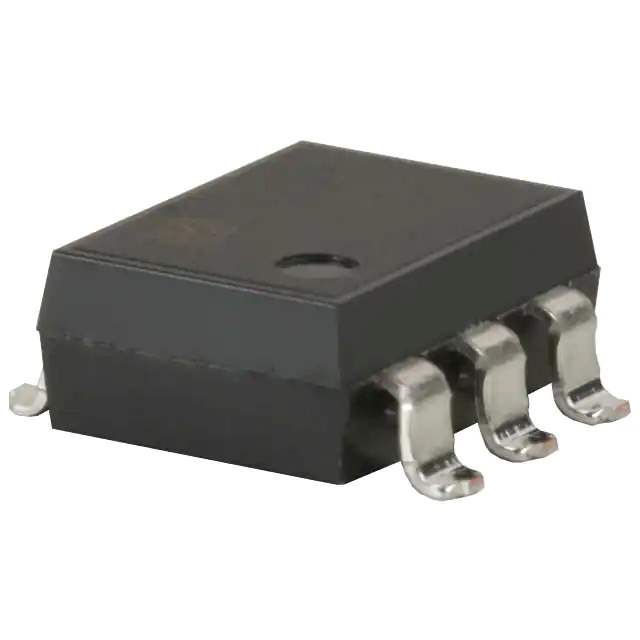

AQV212EHAX Real Image
Same model may have multiple batches, images only for reference.

AQV212EHAX

Part No AQV212EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 550MA 0-60V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 60 V
Load Current 550 mA
On-State Resistance (Max) 2.5 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV212
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861707-AQV212EHAX
Ultra Librarian 3D Model Ultra Librarian AQV212EHAX CAD Model

Description

The AQV212EHAX is a solid-state relay from Panasonic's PhotoMOS AQV series.

  • Termination Style: Gull wing
  • Circuit Configuration: SPST-NO (1 Form A)
  • Input Voltage: 1.14VDC
  • On-State Resistance: 2.5 Ohms
  • Load Current: 550 mA
  • Load Voltage Range: 0 V to 60 V
  • Mounting: Surface mount
  • Package: 6-SMD package
  • Status: Active
  • Standard Package: 1,000 pcs
