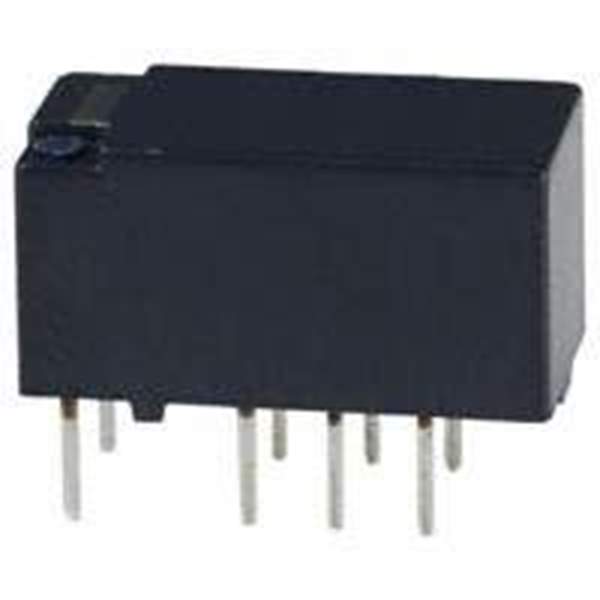

ASX22003 Real Image
Same model may have multiple batches, images only for reference.

ASX22003

Part No ASX22003
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 10MA 3V
Datasheet
ASX22003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type Telecom
Coil Type Latching, Dual Coil
Coil Current 23.3mA
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10mA
Switching Voltage 10VDC - Max
Turn On Voltage (Max) 2.4 VDC
Operate Time 5ms
Release Time 5ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 70 mW
Coil Resistance 129 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 1104179-ASX22003
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ASX22003 CAD Model

Description

The Panasonic Electric Works 1104179-ASX22003 is a telecom relay with DPDT (2 Form C) contact form.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 3VDC
  • Coil Resistance: 129 Ohms
  • Coil Type: Dual Coil Latching
  • Coil Current: 23.3mA
  • Operate Time: 5ms
  • Release Time: 5ms
  • Mounting Type: Through Hole
  • Contact Rating (Current): 10mA
  • Switching Voltage: 10VDC - Max
  • Turn On Voltage (Max): 2.4 VDC
