Same model may have multiple batches, images only for reference.

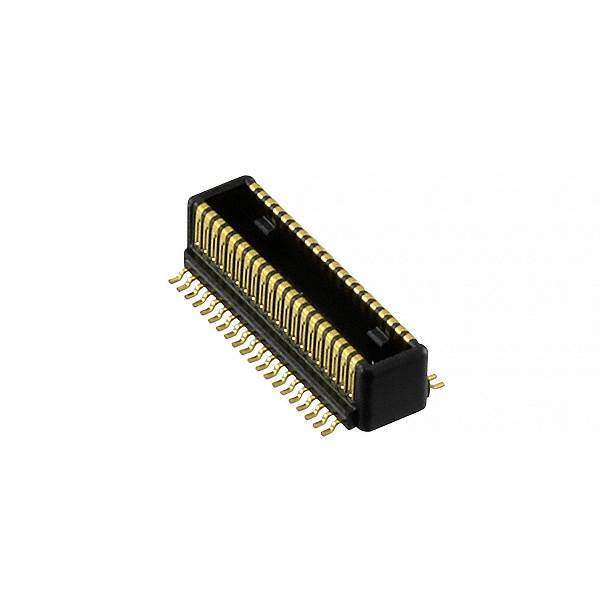

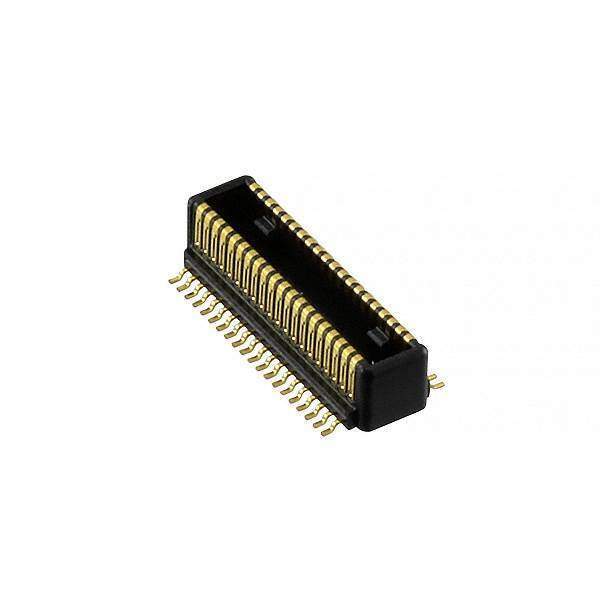

AXK840245WG

Name: AXK840245WG
Brand: Panasonic
SKU: 985291
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AXK840245WG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic Electric Works
Series	P4
Package	Tube
Connector Type	Header, Outer Shroud Contacts
Number of Positions	40
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Contact Finish	Gold
Mated Stacking Heights	3mm, 3.5mm
Height Above Board	0.089" (2.26mm)
Base Product Number	AXK840245
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	255-4253-5
Standard Package	100
Win Source Part Number	985291-AXK840245WG
Ultra Librarian 3D Model	Ultra Librarian AXK840245WG CAD Model

Alternative Products

Description

The Panasonic Electric Works AXK840245WG is a rectangular connector array with 40 positions and a pitch of 0.016" (0.40mm).

Positions: 40
Pitch: 0.016" (0.40mm)
Type: Header with outer shroud contacts
Mounting: SMD (SMT)
Height Above Board: 0.089" (2.26mm)
Packaging: Tube
Series: P4
Mated Stacking Heights: 3mm and 3.5mm
Contact Finish: Gold
ECCN: EAR99
Application: Board-to-board
