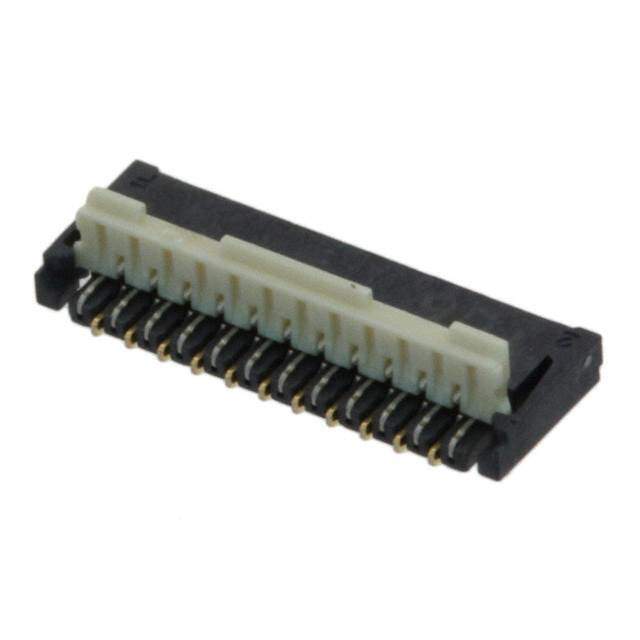

Same model may have multiple batches, images only for reference.

AYF332535A

Name: AYF332535A
Brand: Panasonic
SKU: 435812
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF332535A
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 25POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	25
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021153-AYF332535A
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian AYF332535A CAD Model

Alternative Products

Description

The Panasonic Electric Works AYF332535A is a connector/contact type electronic component that has 25 positions and a pitch of 0.012" (0.30mm).

Popularity: Medium
Supply and Demand Status: Sufficient
Manufacturer: Panasonic
Win Source Part Number: 1021153
Suitable for: Use in various electronic devices
