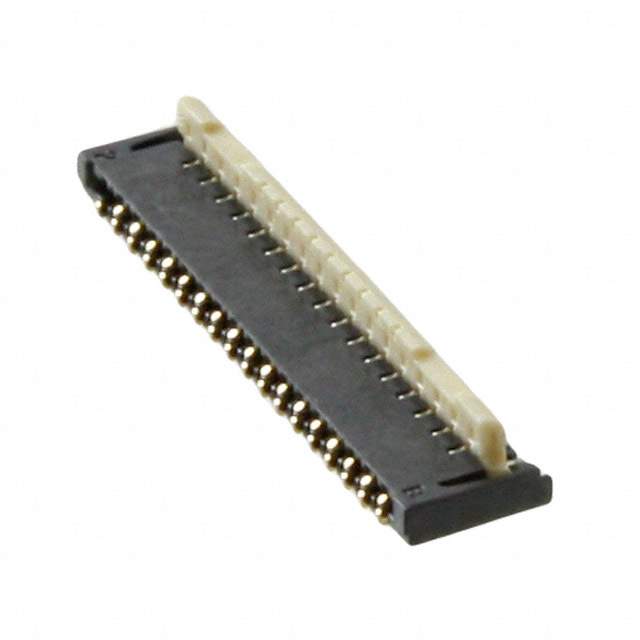

Same model may have multiple batches, images only for reference.

AYF333535

Name: AYF333535
Brand: Panasonic
SKU: 435816
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF333535
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 35POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	35
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021157-AYF333535
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian AYF333535 CAD Model

Alternative Products

Description

This component falls under the category of connectors, interconnects and is a FPC flat flex type.

Mounting Type: Surface mount, right angle
Suitable for: Various electronic devices
Manufacturer: Panasonic Electric Works
