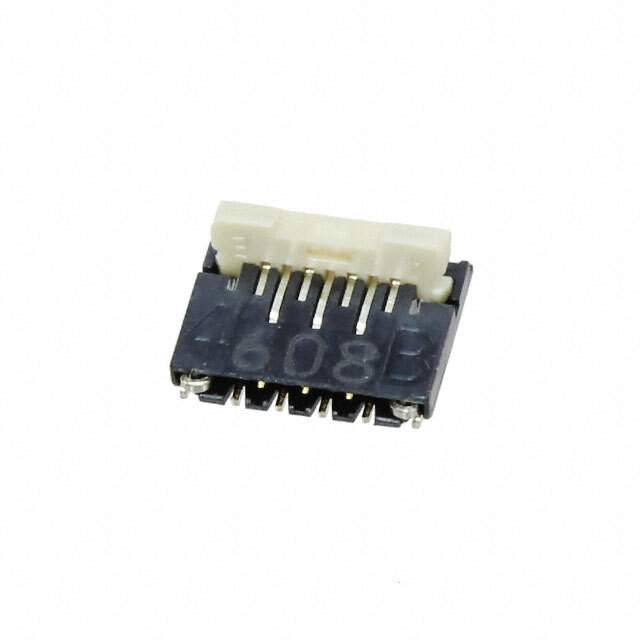

Same model may have multiple batches, images only for reference.

AYF350725A

Name: AYF350725A
Brand: Panasonic
SKU: 435820
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF350725A
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 7POS 0.3MM SMD R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Cut Strip
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	7
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.023" (0.60mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Mating Cycles	20
Win Source Part Number	1021161-AYF350725A
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian AYF350725A CAD Model

Alternative Products

Description

Panasonic Electric Works AYF350725A is a connector that falls under the category of electronic components.

Material: liquid crystal polymer (LCP)
Material Flammability Rating: UL94 V-0
Supply and Demand: balance
Pitch: 0.012" (0.30mm)
Voltage Rating: 50V
