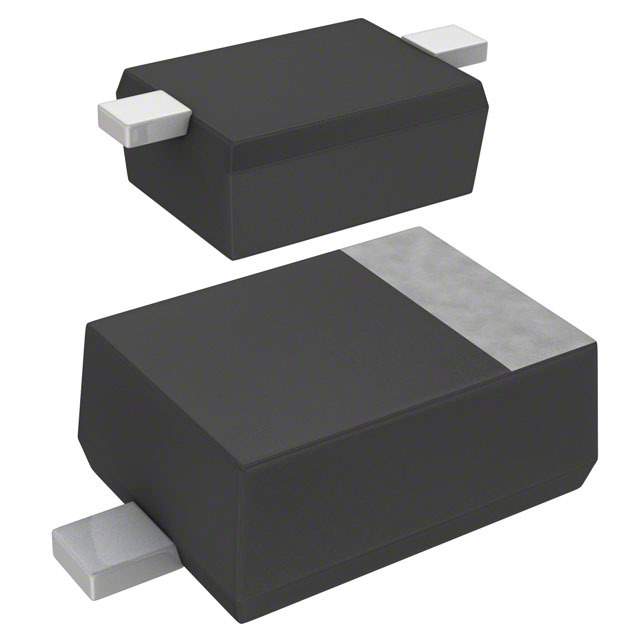

DA2J10800L Real Image
Same model may have multiple batches, images only for reference.

DA2J10800L

Part No DA2J10800L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 200MA SMINI2
Datasheet
DA2J10800L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Current - Reverse Leakage @ Vr 1μA @ 300V
Capacitance @ Vr, F 3.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F5-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032357-DA2J10800L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DA2J10800L CAD Model

Description

The DA2J10800L is a standard diode from Panasonic Electronic Components.

  • Voltage DC Reverse (Vr): 300V
  • Average Rectified Current (Io): 200mA
  • Forward Voltage (Vf): 1.2V @ 200mA
  • Reverse Leakage Current: 1μA @ 300V
  • Capacitance: 3.5pF @ 0V, 1MHz
  • Package: SMini2-F5-B
