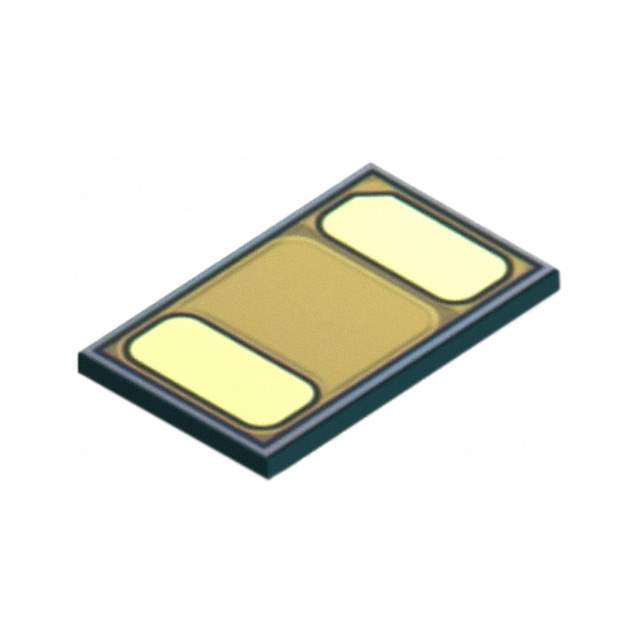

DB2G42900L1 Real Image
Same model may have multiple batches, images only for reference.

DB2G42900L1

Part No DB2G42900L1
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A 0402 / Diode Schottky 40 V 1A Surface Mount 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 520 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 8.8 ns
Current - Reverse Leakage @ Vr 150 µA @ 40 V
Capacitance @ Vr, F 28pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Operating Temperature - Junction 150°C (Max)
Base Product Number DB2G429
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names P18982CT,P18982DKR,P18982TR
Standard Package 1,000
Win Source Part Number 1055219-DB2G42900L1
Ultra Librarian 3D Model Ultra Librarian DB2G42900L1 CAD Model

Description

The BD2G42900L1 Schottky diode by Panasonic Electronic Components has a voltage rating of 40V and an average rectified current of 1A.

  • Voltage Rating: 40V
  • Average Rectified Current: 1A
  • Forward Voltage: 520mV @ 1A
  • Reverse Leakage Current: 150μA @ 40V
  • Reverse Recovery Time: 8.8ns
  • Capacitance: 28pF @ 10V, 1MHz
  • Mounting Type: Surface Mount (SMD/SMT)
  • Package/Case Size: 0402 (1005 Metric)
  • Operating Temperature: Up to 150°C
  • ECCN: EAR99 compliant
  • Package Includes: 1000 diodes in tape and reel package
