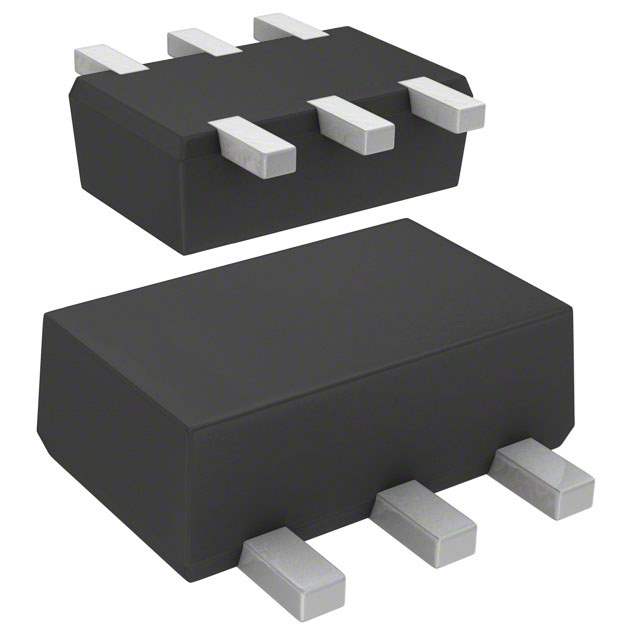

DMC564010R

Part No DMC564010R
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS DUAL NPN SMINI6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Transistor Polarity 2 NPN - Pre-Biased (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 10k
Typical Gain (hFE) (Min) 35 @ 5mA, 10V
Max Vce (sat) 250mV @ 500μA, 10mA
Collector Cut-off Current(Max) 500nA
Maximum Power Dissipation 150mW
Mounting SMD (SMT)
Case / Package SMini6-F3-B
Win Source Part Number 014366-DMC564010R
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DMC564010R CAD Model

Description

Product Overview

The DMC564010R provides high-end functionality and durability, suitable for the most challenging applications.

Features and Benefits

  • Robust architecture for enhanced endurance
  • Low power consumption with high output rate
  • Compact design without compromising on power

Applications

  • Aerospace systems
  • High-frequency communication devices
  • Battery management systems
  • Industrial machinery controls

This component offers top-tier performance, making it highly suitable for applications where reliability is paramount.
