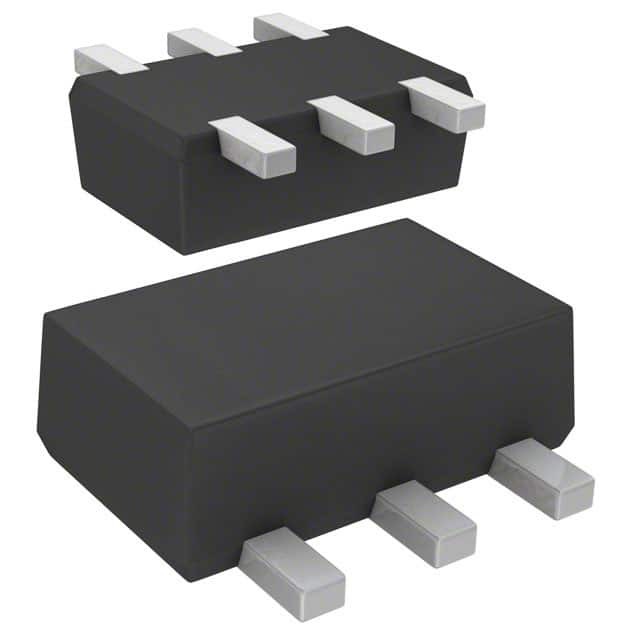

Same model may have multiple batches, images only for reference.

DMC564040R

Name: DMC564040R
Brand: Panasonic
SKU: 850134
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

Part No	DMC564040R
Manufacturer	Panasonic
Catalog	Transistors (BJT) - Arrays, Pre - Biased
Description	TRANS PREBIAS DUAL NPN SMINI6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar Transistor Arrays, Pre-Biased
Mfr	Panasonic
Package	Tape & Reel
Product Status	Discontinued
Transistor Type	2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	10kOhms
Resistor - Emitter Base (R2)	47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic	250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Power - Max	150mW
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	SMini6-F3-B
Base Product Number	DMC56404
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.21.0095
Win Source Part Number	850134-DMC564040R
Ultra Librarian 3D Model	Ultra Librarian DMC564040R CAD Model

Alternative Products

Description

The Panasonic 850134-DMC564040R is a pre-biased bipolar transistor array designed for discrete semiconductor applications.

Manufacturer: Panasonic
Transistor Type: 2 NPN, Pre-Biased
Voltage - Collector Emitter Breakdown (Max): 50 V
Current - Collector (Ic) (Max): 100 mA
Power - Max: 150 mW
Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
Resistor - Base (R1): 4.7 kOhms
Resistor - Emitter Base (R2): 47 kOhms
Mounting Type: Surface Mount
Package / Case: 6-SMD, Flat Leads
Packaging: Tape & Reel (TR)
Standard Package: 3,000
ECCN: EAR99
Product Status: Discontinued
