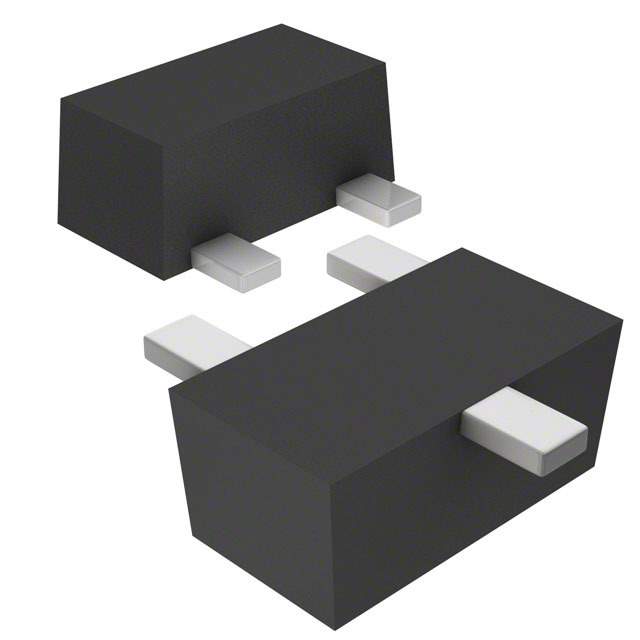

DRA9143Z0L

Name: DRA9143Z0L
Brand: Panasonic
SKU: 772832
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DRA9143Z0L
Manufacturer	Panasonic
Catalog	Transistors (BJT) - Single, Pre - Biased
Description	TRANS PREBIAS PNP 125MW SSMINI3 / Trans Digital BJT PNP 50V 100mA 3-Pin SSMini3-F3-B T/R
Datasheet	DRA9143Z0L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Panasonic Electronic Components
Packaging	Reel package
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Maximum)	100mA
Voltage - Collector Emitter Breakdown (Maximum)	50V
Resistor - Base (R1) (Ohms)	4.7k
Resistor - Emitter Base (R2) (Ohms)	47k
DC Current Gain (hFE) (Minimum) @ Ic, Vce	80 @ 5mA, 10V
Vce Saturation (Maximum) @ Ib, Ic	250mV @ 500μA, 10mA
Current - Collector Cutoff (Maximum)	500nA
Power - Max	125mW
Mounting	SMD
Package	SC-89, SOT-490
Manufacturer Package	SSMini3-F3-B
Win Source Part Number	772832-DRA9143Z0L
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Family Name	DRA9143Z
Introduction Date	November 24, 2009
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian DRA9143Z0L CAD Model

Alternative Products

Description

The Panasonic DRA9143Z0L is a PNP pre-biased transistor in the SC-89, SOT-490 package.

Current Collector (Ic): 100mA
Voltage Collector Emitter Breakdown: 50V
Vce Saturation (Maximum) @ Ib, Ic: 250mV @ 500μA, 10mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce: 80 @ 5mA, 10V
Resistor - base (R1) (Ohms): 4.7k
Resistor - emitter base (R2) (Ohms): 47k
Package: SSMini3-F3-B
Mounting Type: SMD
Applications: Audio amplifiers, voltage regulators, power management
