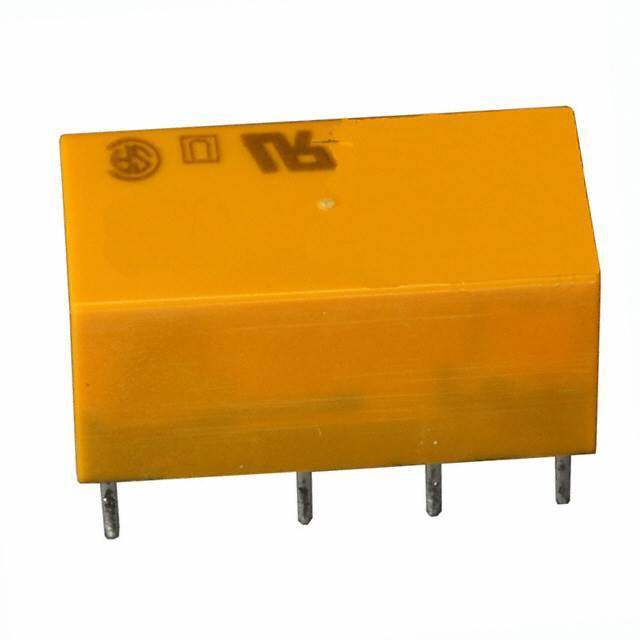

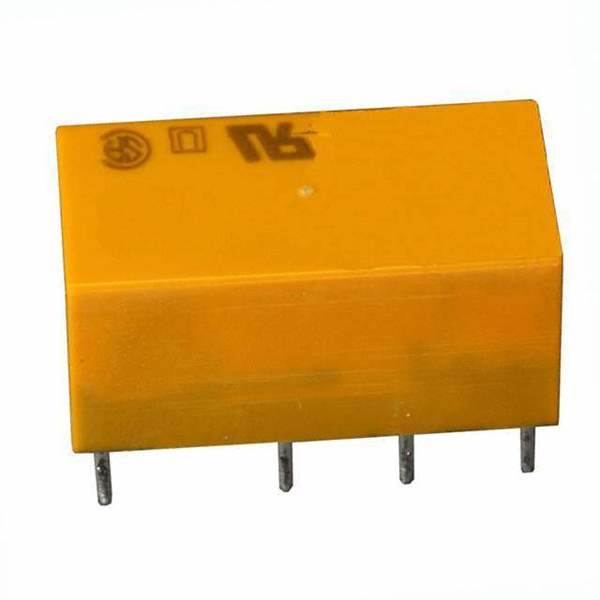

DS2E-S-DC12V

Part No DS2E-S-DC12V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 134228-DS2E-S-DC12V
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DS2E-S-DC12V CAD Model

Description

DS2E-S-DC12V

The DS2E-S-DC12V is designed to provide stable and efficient switching in various electrical setups. Its universal design makes it ideal for numerous uses.

  • Applications:
    • Security systems
    • Test and measurement equipment
    • Motor control
  • Features and Benefits:
    • 12V DC operation for compatibility with standard systems
    • Reliable coil and contact design for high performance
    • Easy to mount and use in diverse applications
  • Additional Details:
    • Manufactured to provide excellent contact stability and high switching capacity
