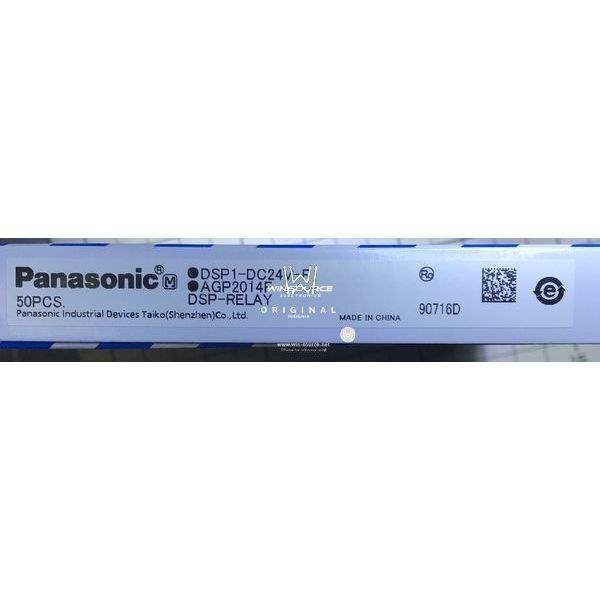

DSP1-DC24V-F

Part No DSP1-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 1.92 kOhms
Temperature Range - Operating -40°C to 65°C
Win Source Part Number 130300-DSP1-DC24V-F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DSP1-DC24V-F CAD Model

Description

DSP1-DC24V-F Relay

Offering enhanced performance, the DSP1-DC24V-F is a relay suited for a wide range of electrical applications. With a focus on reliability, this relay ensures smooth operation in various systems requiring a 24V DC power interface.

Features and Benefits

  • Voltage Rating: 24V DC, ideal for high-power devices.
  • Durability: Engineered for longevity with superior materials.
  • Stable Operation: Ensures consistent performance in demanding environments.

Applications and Projects

  • Telecommunications Equipment
  • Energy Management Systems
  • Automated Control Systems
  • Renewable Energy Projects

Whether you are working on cutting-edge technology solutions or enhancing current systems, this relay is a dependable component.
