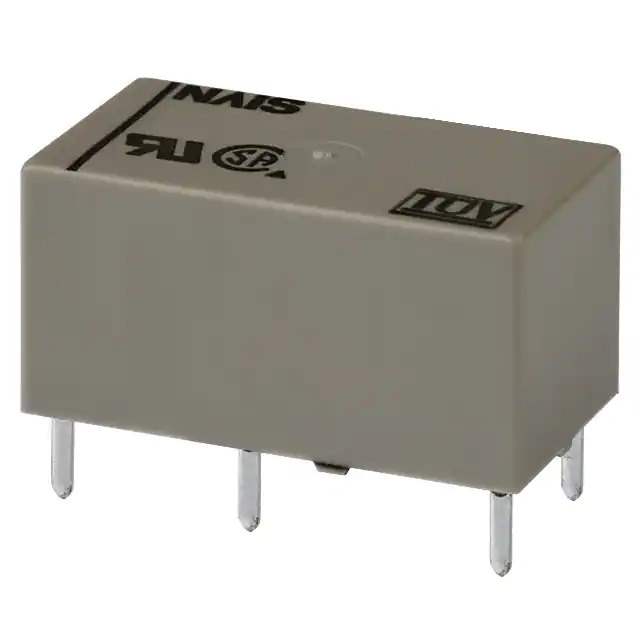

DSP1-DC5V Real Image
Same model may have multiple batches, images only for reference.

DSP1-DC5V

Part No DSP1-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 5V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 5VDC Coil Through Hole
Datasheet
DSP1-DC5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 60 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 83.3 Ohms
Base Product Number DSP1-DC
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 843276-DSP1-DC5V
Ultra Librarian 3D Model Ultra Librarian DSP1-DC5V CAD Model

Description

The 843276-DSP1-DC5V is a power relay component manufactured by Panasonic.

  • Category: Relays - Power Relays, Over 2 Amps
  • Series: DSP
  • Termination Style: PC Pin
  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Standard Package: 50 pieces
  • Coil Resistance: 83.3 Ohms
  • Coil Current: 60mA
  • Operate Time: 10ms
  • Release Time: 5ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 5VDC
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 30VDC maximum
  • Seal Rating: Sealed - Fully
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 65°C
  • ECCN: EAR99
  • Status: Obsolete
