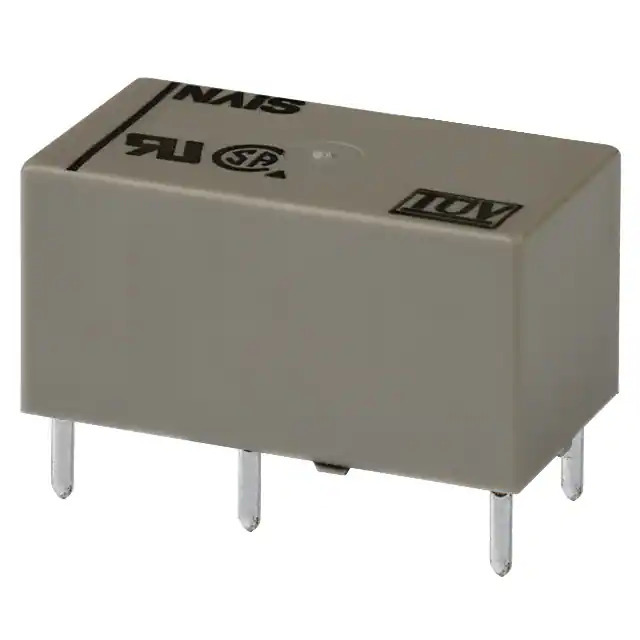

DSP1-L2-DC24V Panasonic
Same model may have multiple batches, images only for reference.

DSP1-L2-DC24V

Part No DSP1-L2-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 24V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
Datasheet
DSP1-L2-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DSP
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 12.5 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 19.2 VDC
Must Release Voltage -
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.92 kOhms
Base Product Number DSP1-L
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1378325-DSP1-L2-DC24V
Ultra Librarian 3D Model Ultra Librarian DSP1-L2-DC24V CAD Model

Description

The Panasonic Electric Works DSP1-L2-DC24V is a power relay from the DSP series.

  • Coil Voltage: 24VDC
  • Contact Rating: 5A
  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Switching Voltage: 250VAC, 30VDC
  • Coil Current: 12.5mA
  • Coil Type: Latching, Dual Coil
  • Seal Type: Fully Sealed
  • Mounting Type: Through Hole
  • Must Operate Voltage: 19.2VDC
  • Response Time (Operate): 10ms
  • Response Time (Release): 5ms
  • Application: General Purpose
  • Coil Resistance: 1.92kOhms
