Same model may have multiple batches, images only for reference.

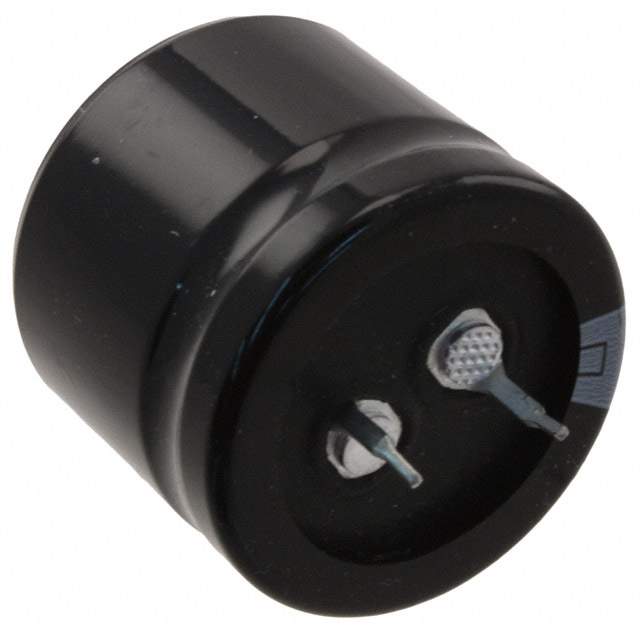

ECO-S2DB152DA Real Image
Same model may have multiple batches, images only for reference.

ECO-S2DB152DA

Part No ECO-S2DB152DA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 20% 200V SNAP
Datasheet
ECO-S2DB152DA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 1500μF
Tolerance ±20%
Voltage Rating 200V
ESR 155 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 2.5A @ 120Hz
Ripple Current - High Frequency 2.85A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Height - Seated (Max) 1.969" (50.00mm)
Mounting Through Hole
Dimension Radial, Can - Snap-In
Win Source Part Number 1032647-ECO-S2DB152DA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECO-S2DB152DA CAD Model

Description

The Panasonic Electronic Components ECO-S2DB152DA is a 1500μF, 200V, through-hole, polarized, radial, can-snap-in capacitor.

  • Capacitance: 1500μF
  • Voltage: 200V
  • Tolerance: ±20%
  • ESR: 155 mOhm @ 120Hz
  • Ripple Current: 2.5A @ 120Hz (low frequency) and 2.85A @ 100kHz (high frequency)
  • Lifetime: 3000 hours @ 105°C
  • Status: Obsolete (EOL)
  • Type: Polarized, Radial, Can-Snap-In
  • Mounting Type: Through-Hole
