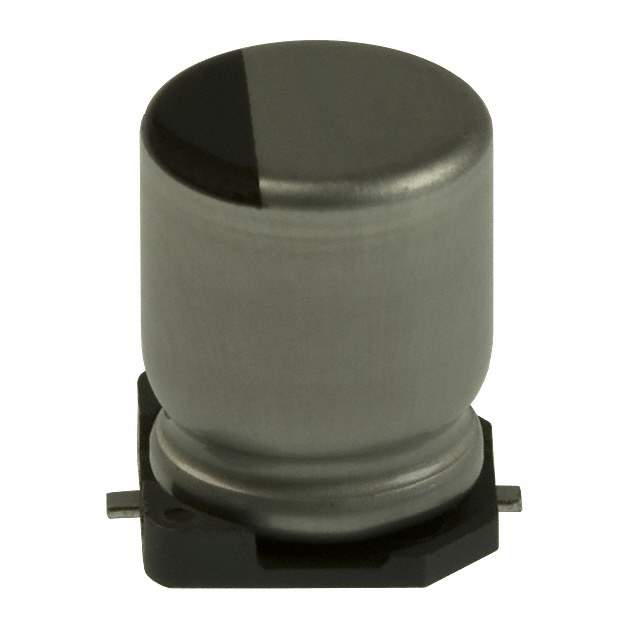

Same model may have multiple batches, images only for reference.

EEE-1EA101AP

Name: EEE-1EA101AP
Brand: Panasonic
SKU: 1307307
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-1EA101AP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	S
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	180 mA @ 120 Hz
Ripple Current @ High Frequency	306 mA @ 10 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-1EA
Other Names	PCE4593DKR,EEE1EA101AP,PCE4593TR,PCE4593CT
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307307-EEE-1EA101AP
Ultra Librarian 3D Model	Ultra Librarian EEE-1EA101AP CAD Model

Description

The EEE-1EA101AP is an aluminum electrolytic capacitor from Panasonic Electronic Components.

Application: Automotive
Capacitance: 100 µF
Tolerance: ±20%
Voltage Rating: 25 V
Lifetime: 2000 Hrs @ 85°C
ESR (Equivalent Series Resistance): Not specified
Package: Radial, can - SMD
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Popularity: Medium
REACH: Unaffected
