Same model may have multiple batches, images only for reference.

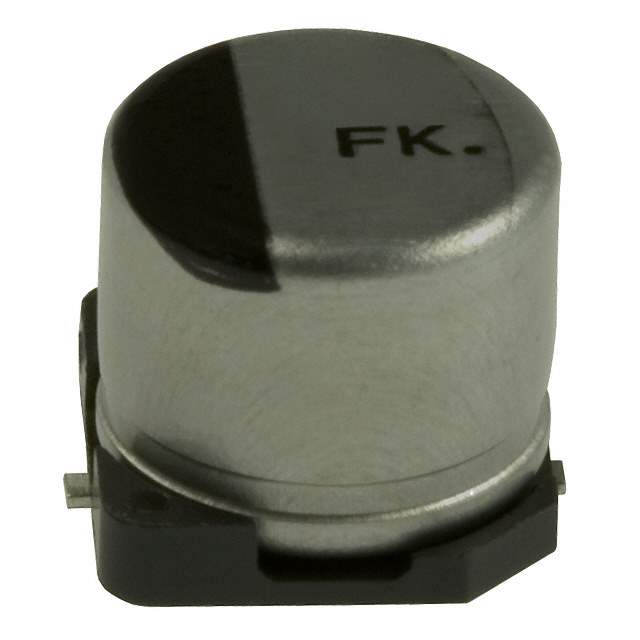

EEE-FK1J100P Real Image
Same model may have multiple batches, images only for reference.

EEE-FK1J100P

Part No EEE-FK1J100P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 63V SMD / 10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 60 mA @ 120 Hz
Ripple Current @ High Frequency 80 mA @ 100 kHz
Impedance 1.5 Ohms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE3818DKR,EEEFK1J100P,PCE3818CT,PCE3818TR
Standard Package 1,000
Win Source Part Number 1161467-EEE-FK1J100P
Ultra Librarian 3D Model Ultra Librarian EEE-FK1J100P CAD Model

Description

The EEE-FK1J100P is a 10 µF aluminum electrolytic capacitor with a rated voltage of 63 V and a capacitance tolerance of ±20% from Panasonic Electronic Components.

  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Application: Automotive
  • AEC-Q200 Rating: Yes
  • Ripple Current (Low Frequency): 60 mA @ 120 Hz
  • Ripple Current (High Frequency): 80 mA @ 100 kHz
  • Height Seated (Max): 0.240" (6.10mm)
  • Dimension: 0.248" Dia (6.30mm)
  • Mechanical Life: 2000 Hrs @ 105°C
  • Polarized: Yes
  • Popularity: High
  • Supply and Demand Status: Sufficient
