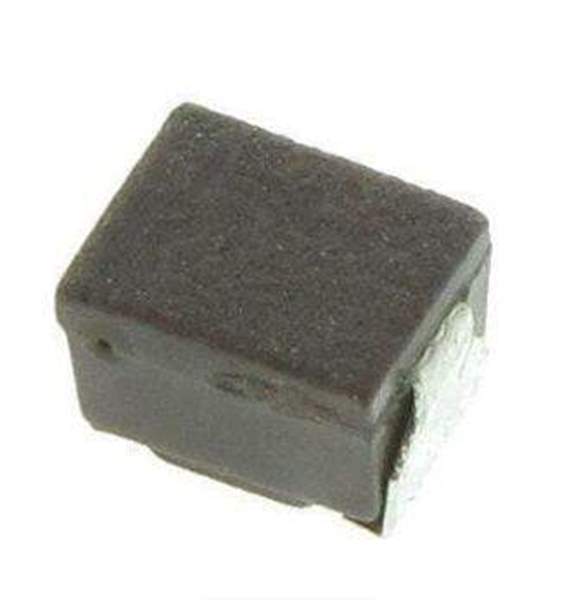

ELJ-NDR47JF

Part No ELJ-NDR47JF
Manufacturer Panasonic
Catalog RF Inductors - SMD
Description RF Inductors - SMD 0805 470nH 5% 145 mA 2.56ohm Wirewound
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic
Category RF Inductors - SMD
Type Wirewound
Package / Case 0805 (2012 metric)
Shielding Unshielded
Inductance 470 nH
Tolerance 5 %
Maximum DC Current 145 mA
Maximum DC Resistance 2.56 Ohms
Minimum Operating Temperature - 20 C
Maximum Operating Temperature + 85 C
Q Minimum 10
Self Resonant Frequency 150 MHz
Termination Standard
Ultra Librarian 3D Model Ultra Librarian ELJ-NDR47JF CAD Model

Description

470 nH Unshielded Wirewound Inductor 145 mA 2.56Ohm Max 0805 (2012 Metric)
