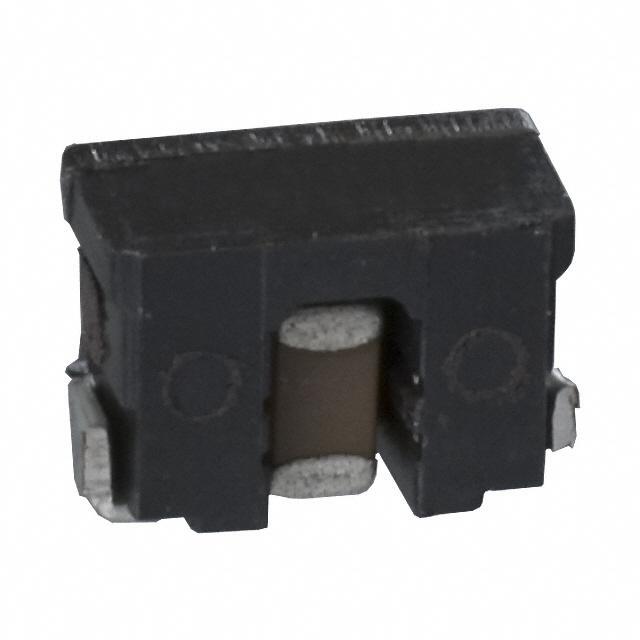

Same model may have multiple batches, images only for reference.

ELK-EA103FA

Name: ELK-EA103FA
Brand: Panasonic
SKU: 773765
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ELK-EA103FA
Manufacturer	Panasonic
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC(T) 0.01UF 500KHZ SMD / EMI Filter LC-Circuit 6A 50VDC J-Bend SMD T/R
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Panasonic Electronic Components
Series	ELKEA
Packaging	Reel package
Type	Low Pass
Filter Order	3rd
Technology	LC (T-Type)
Number of Channels	1
Center / Cutoff Frequency	500kHz (Cutoff)
Current	6A
Values	C = 10000pF
ESD Protection	No
Operating Temperature Range	-20°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage Rating DC	50V
Mounting	SMD
Package	1207 (3218 Metric), 3 PC Pad
Dimension	0.126" L x 0.071" W (3.20mm x 1.80mm)
Height	0.087" (2.20mm)
Win Source Part Number	773765-ELK-EA103FA
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	2k pcs
Family Name	ELKEA
Introduction Date	February 27, 2006
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ELK-EA103FA CAD Model

Alternative Products

Description

The Panasonic Electronic Components ELKEA series low pass filter is a surface mountable filter.

Height: 0.087 inches (2.20mm)
Current Rating: 6A
Cutoff Frequency: 500kHz
Filter Order: Third-order
Channels: Single
C Value: 10000pF
Applications: Data lines for mobile devices
Voltage Rating DC: 50V
Technology: LC (T-Type)
Dimension: 0.126 inches L x 0.071 inches W (3.20mm x 1.80mm)
Packaging: Reel
Quantity per Package: 2k pcs
Popularity: Medium
Supply and Demand Status: Limited
