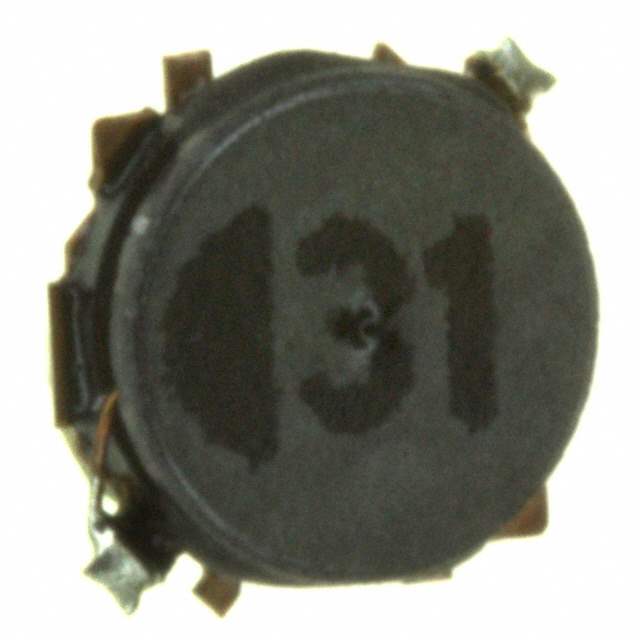

ELL-4FG220MA

Part No ELL-4FG220MA
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 22UH 500MA 620 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 500mA
Current - Saturation 420mA
DC Resistance (DCR) 620 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 112217-ELL-4FG220MA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-4FG220MA CAD Model

Description

Product Description

The ELL-4FG220MA is ideal for energy-sensitive applications, offering an efficient balance between power and performance. Its functional profile addresses both current and future project needs effectively.

Features and Benefits

  • Energy-Sensitive Design: Balances performance with low power consumption.
  • Reliability Under Load: Capable of operating effectively under demanding conditions.
  • Streamlined Functionality: Simplifies project development with its user-friendly architecture.

Applications

  • Telecommunication Systems
  • Environmental Monitoring Systems
  • Smart Grid Technologies

Embrace the ELL-4FG220MA for projects that require a robust, energy-efficient solution.
