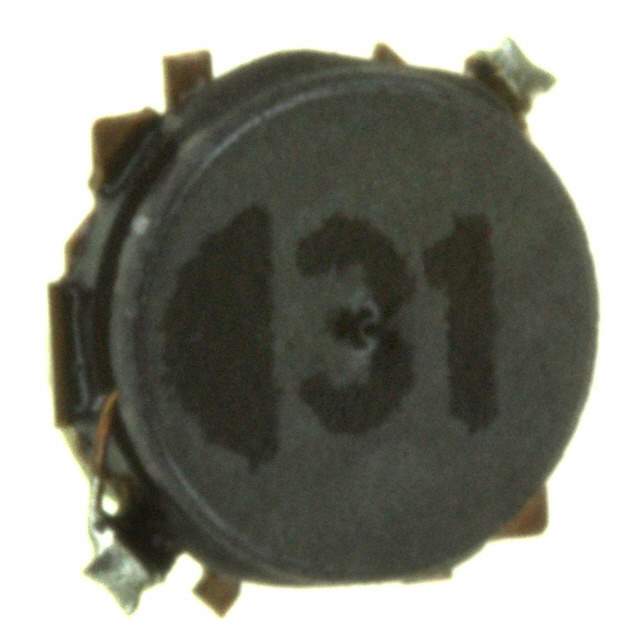

The ELL4FG100MA is a fixed inductor manufactured by Panasonic. It is designed to provide an inductance of 10µH (microhenries) and is commonly used in a variety of electronic circuits for filtering, impedance matching, and energy storage purposes.

Applications:

• DC-DC converters
• Power supplies
• RF circuits
• EMI filtering
• Signal processing

Features:

• Fixed inductance value of 10 µH
• Compact size
• Surface mount design
• High reliability and stability
• RoHS compliant

Benefits:

• Provides a stable and predictable inductance in critical circuit functions.
• Effective noise suppression in power and signal lines.
• Space-saving design due to compact size.
• Easy to integrate into automated manufacturing processes.
• Environmentally friendly due to RoHS compliance.

Additional Details:

The ELL4FG100MA typically comes in a surface mount package. Important specifications to consider when using this inductor include the tolerance, self-resonant frequency (SRF), DC resistance (DCR), saturation current, and operating temperature range. These parameters dictate the inductor's performance in specific applications. Always refer to the official Panasonic datasheet for complete electrical characteristics and mechanical dimensions. Correct application of this inductor will enhance the overall performance and stability of electronic devices by providing effective filtering, impedance matching, and energy storage.
