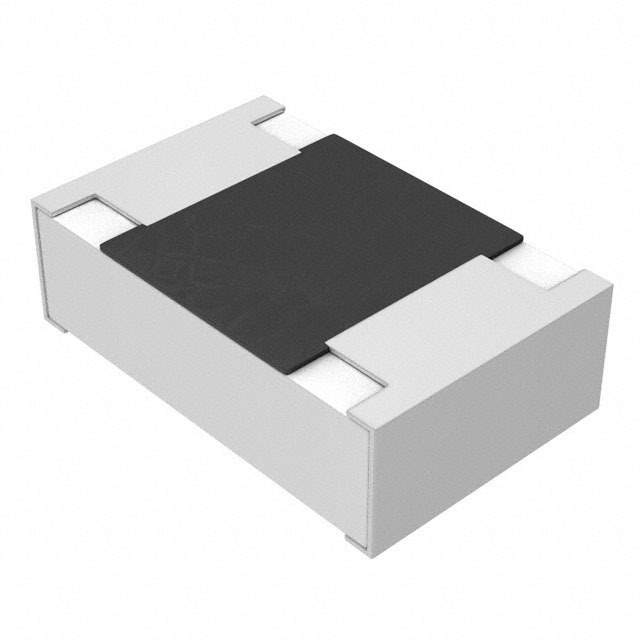

The ERJ6ENF1001V is a thick film chip resistor from Panasonic's ERJ series, designed for surface mount applications. It offers reliable performance and stability in a compact package. This resistor is commonly used for current limiting, voltage division, and pull-up/pull-down resistor applications in a wide range of electronic devices.

Applications:

• Current limiting in LED lighting circuits.
• Voltage division in sensor circuits.
• Pull-up and pull-down resistors in digital logic circuits.
• Termination resistors for signal lines.
• Snubber circuits for transient voltage suppression.

Features:

• Thick Film Construction: Provides excellent stability and reliability.
• Surface Mount Technology (SMT): Enables high-density board assembly and automated placement.
• Compact Size: Small form factor saves valuable board space.
• High Precision: Offers precise resistance values with tight tolerances.
• Wide Resistance Range: Available in a broad range of resistance values to suit various applications.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances (RoHS) directive.

Benefits:

• Reliable Performance: Ensures stable and consistent performance in demanding applications.
• Cost-Effective: Provides a cost-effective solution for current limiting and voltage division.
• Easy Assembly: Simplifies board assembly with standard SMT processes.
• Space Saving: Compact size allows for high-density board layouts.
• Environmentally Friendly: RoHS compliance ensures environmental responsibility.

Additional Details:

The ERJ6ENF1001V has a resistance value of 1k Ohms. It typically has a power rating of 0.125W (1/8W). The tolerance is usually around 1%. The temperature coefficient of resistance (TCR) is a key parameter indicating how much the resistance changes with temperature variations. This resistor is designed to operate within a specified temperature range, typically from -55°C to +155°C. The resistor's construction involves a resistive element deposited on a ceramic substrate, with terminations for soldering to the printed circuit board. Proper soldering techniques are essential to ensure reliable electrical and mechanical connections.
