ERZ-V10D560 Panasonic – Price, Stock & Datasheet

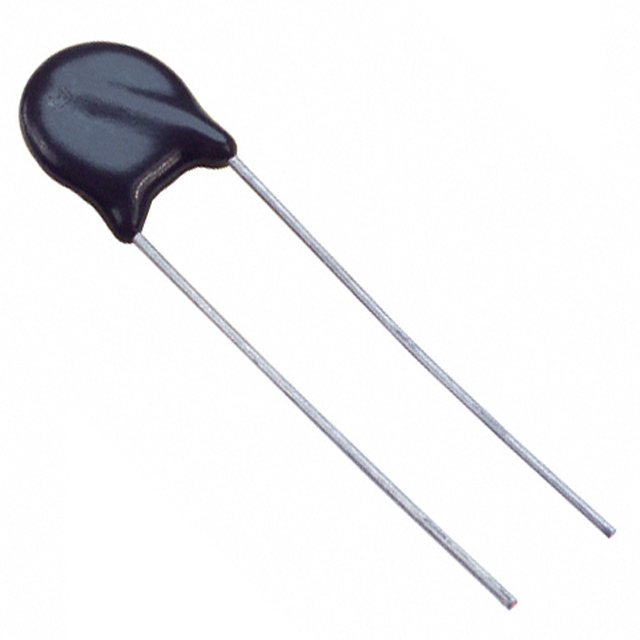

Same model may have multiple batches, images only for reference.

ERZ-V10D560

Part No ERZ-V10D560
Manufacturer Panasonic
Catalog Varistors, MOVs
Description VARISTOR 56V 1KA DISC 11.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Maximum AC Volts 35 V
Maximum DC Volts 45 V
Varistor Voltage (Min) 50 V
Varistor Voltage (Typ) 56 V
Varistor Voltage (Max) 62 V
Current - Surge 1 kA
Energy 8.1J
Number of Circuits 1
Capacitance @ Frequency 3750 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Case / Package Disc 11.5mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1608683-ERZ-V10D560
Ultra Librarian 3D Model Ultra Librarian ERZ-V10D560 CAD Model
