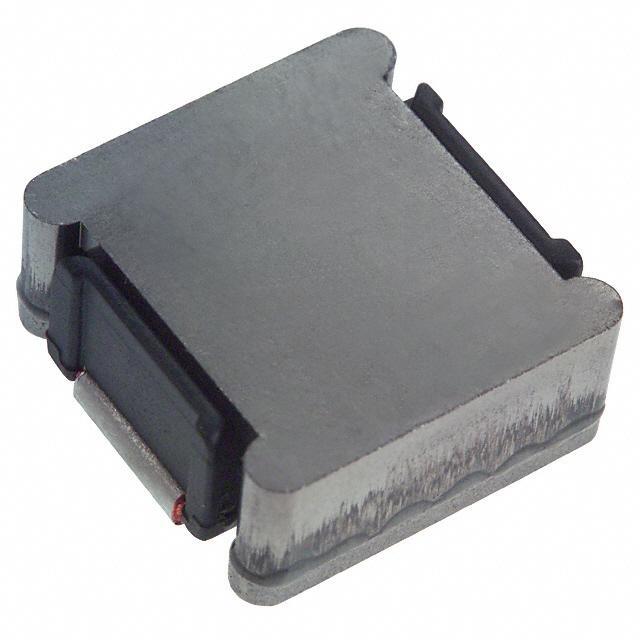

Same model may have multiple batches, images only for reference.

ETQ-P6F0R6BFA

Name: ETQ-P6F0R6BFA
Brand: Panasonic
SKU: 774273
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ETQ-P6F0R6BFA
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 580NH 19A 1.44 MOHM / Power Choke Wirewound 0.58uH/0.54uH 20% 100KHz Metal Dust 19A 0.00144Ohm DCR T/R
Datasheet	ETQ-P6F0R6BFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Panasonic Electronic Components
Series	PCC-D126F (N6B)
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	580nH
Tolerance	±20%
Current Rating	19A
Shielding	Shielded
DC Resistance (DCR)	1.44 mOhm Max
Test Frequency	100kHz
Mounting	SMD
Package	2-SMD, J-Lead
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum)	0.224" (5.70mm)
Win Source Part Number	774273-ETQ-P6F0R6BFA
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PCC-D126F
Introduction Date	June 10, 2006
ECCN	EAR99
Country of Origin	Indonesia, Singapore
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ETQ-P6F0R6BFA CAD Model

Alternative Products

Description

This wirewound inductor is manufactured by Panasonic Electronic Components.

Series: PCC-D126F (N6B)
Inductance: 580nH
Current Rating: 19A
Type: Shielded SMD J-Lead
Tolerance: ±20%
DC Resistance (DCR): 1.44 mOhm Max
Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
Height: 0.224 inches (5.70mm)
Material: Ferrite
Compliance: Halogen-free
