Same model may have multiple batches, images only for reference.

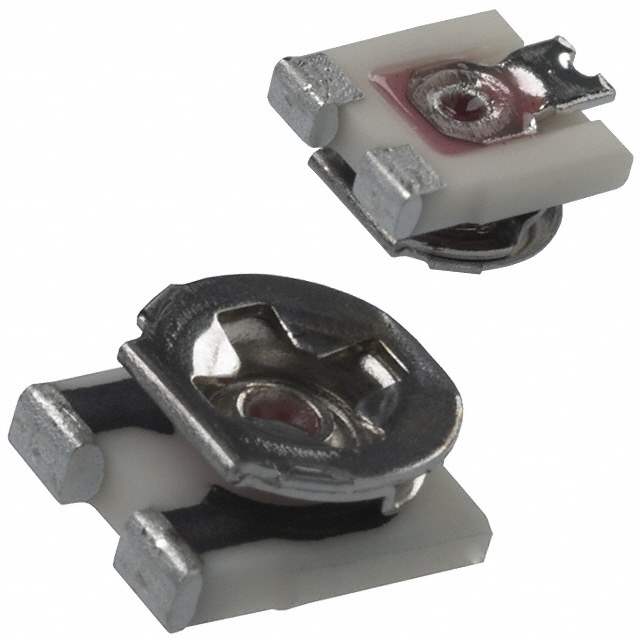

EVM-3YSX50B22 Real Image
Same model may have multiple batches, images only for reference.

EVM-3YSX50B22

Part No EVM-3YSX50B22
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.15W SMD
Datasheet
EVM-3YSX50B22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 200
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.136" x 0.122" Face x 0.061" H (3.45mm x 3.10mm x 1.55mm)
Win Source Part Number 098859-EVM-3YSX50B22
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EVM-3YSX50B22 CAD Model

Description

EVM-3YSX50B22

The EVM-3YSX50B22 is an advanced trimmer potentiometer with a 5k Ohm resistance, built to enhance circuit performance with its precision adjustments and stable operating characteristics.

Features and Benefits:

  • Precision Resistance: 5k Ohm resistance for fine-tuned adjustments.
  • Compact Design: Space-efficient design suitable for compact PCB integration.
  • High Stability: Exceptional stability for consistent performance.
  • Long-lasting: Manufactured with durable materials for extended life.

Applications:

  • Industrial control systems
  • Measurement equipment
  • Automotive sensors
  • Medical devices
