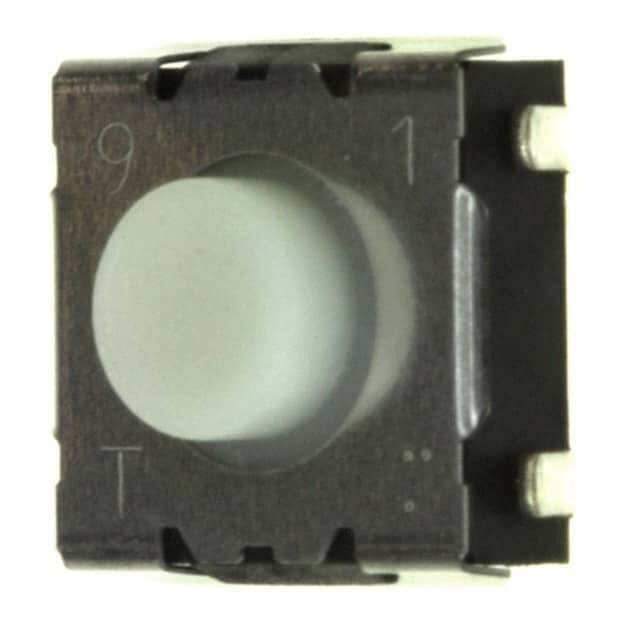

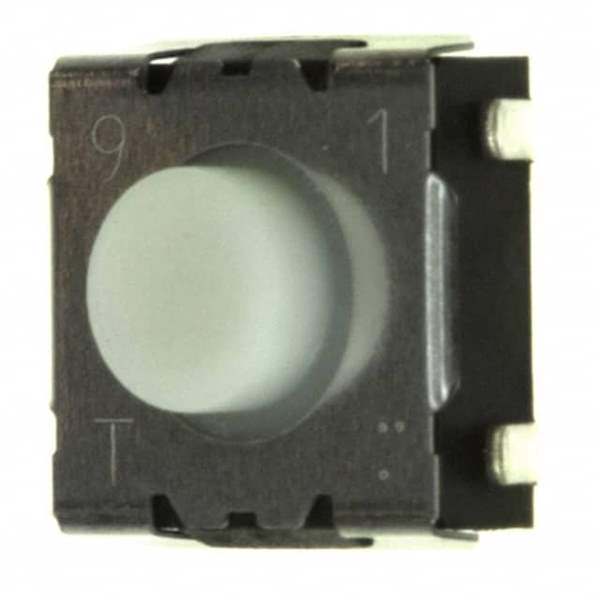

Part No EVQ-QXT02W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVQ-QXT02W Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQQX
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 260gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-QX
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871305-EVQ-QXT02W
Ultra Librarian 3D Model Ultra Librarian EVQ-QXT02W CAD Model

Description

The Panasonic EVQ-QXT02W is a tactile switch that belongs to the switches category.

  • Circuit Configuration: SPST-NO (single-pole, single-throw normally open)
  • Switch Travel: 0.25mm
  • Operating Force: 260gf
  • Contact Rating: 0.02A @ 15VDC
  • Mounting: Surface Mountable
  • Size: 6.20mm x 6.20mm
  • Mechanical Life: 100,000 cycles
