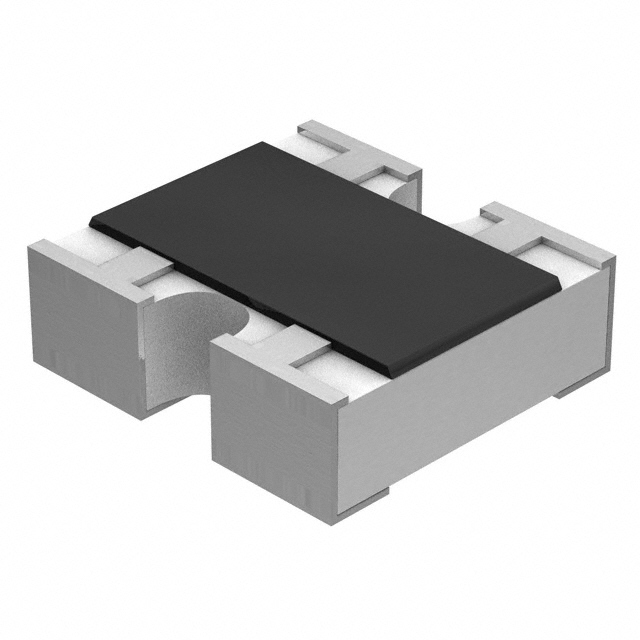

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit Type Isolated
Resistance (Ohms) 150
Tolerance ±5%
Number of Resistors 2
Number of Pins 4
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Grade Automotive
Qualification AEC-Q200
Mounting Type Surface Mount
Case / Package 0404 (1010 Metric), Convex
Supplier Device Package 0404
Size / Dimension 0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max) 0.018\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1585917-EXB-24V151JX
Ultra Librarian 3D Model Ultra Librarian EXB-24V151JX CAD Model
