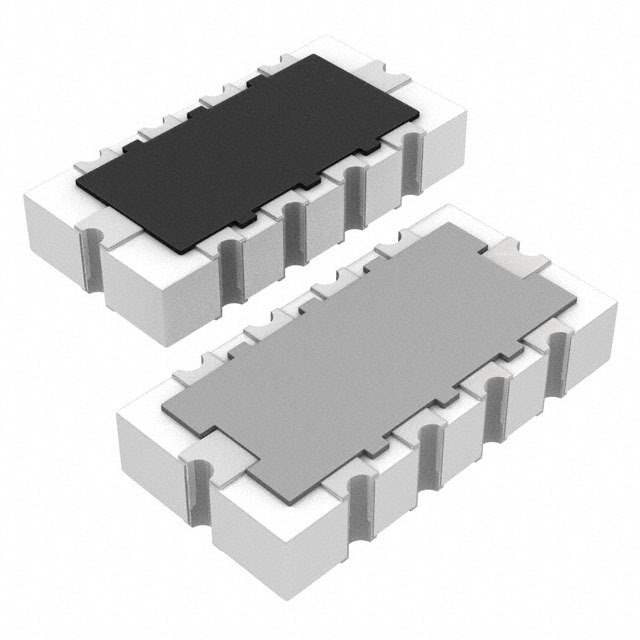

EZA-DT13AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT13AAAJ

Part No EZA-DT13AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 22 OHM/100PF SMD
Datasheet
EZA-DT13AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 22
Values R = 22 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 102488-EZA-DT13AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-DT13AAAJ CAD Model

Description

EZA-DT13AAAJ

The EZA-DT13AAAJ is designed to seamlessly support various advanced electronic systems, providing unmatched adaptability and functionality.

  • Applications:
    • Telecommunications
    • Robotics
    • Data centers
    • Smart grid technologies

Features and Benefits:

  • Highly adaptive to system changes
  • Supports high-speed data processing
  • Compact and lightweight design
  • Exceptional reliability in critical applications

Additional Details: This component's adaptability and high data throughput capabilities make it particularly suited for complex and dynamic technological environments.
