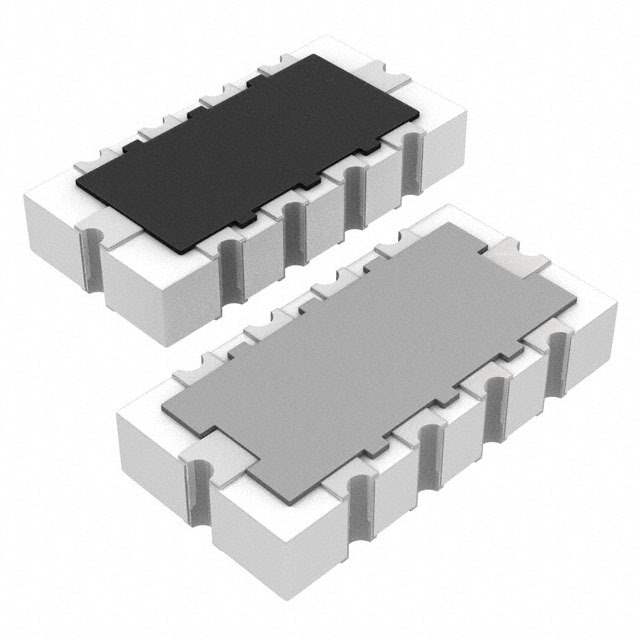

EZA-DT52AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT52AAAJ

Part No EZA-DT52AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 470 OHM/47PF SMD
Datasheet
EZA-DT52AAAJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 470
Values R = 470 Ohms, C = 47pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 110486-EZA-DT52AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-DT52AAAJ CAD Model

Description

Overview of EZA-DT52AAAJ

The EZA-DT52AAAJ is a premier electronic component known for its adaptability and high-performance metrics, suitable for various electronics projects.

  • Features and Benefits:
    • Flexible and adaptable design
    • Exceptional power efficiency
    • Enhanced resistance to wear and tear
    • Optimized for accuracy
  • Applications:
    • Robotics
    • Energy management systems
    • Consumer electronics
    • Data communication networks
  • Additional details: The EZA-DT52AAAJ stands out with its superior quality and performance, catering to both standard and sophisticated needs.
