Same model may have multiple batches, images only for reference.

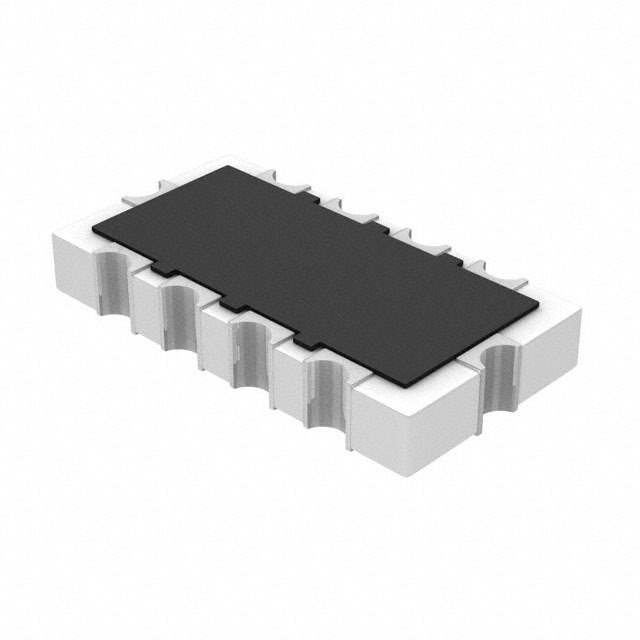

EZA-ST23AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST23AAAJ

Part No EZA-ST23AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 47 OHM/100PF SMD
Datasheet
EZA-ST23AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 47
Values R = 47 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 124487-EZA-ST23AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-ST23AAAJ CAD Model

Description

Product Overview

Specifically engineered for rapid deployment in digital systems, the EZA-ST23AAAJ is a top choice for cutting-edge electronic developments.

Features and Benefits

  • High-speed data processing
  • Compact form factor
  • Simplified integration into circuits
  • Optimized for digital signal integrity

Applications

  • Modern computing systems
  • Advanced robotics
  • Digital circuit design
  • Artificial intelligence hardware

Additional Details

Crafted to support high-performance digital applications, ensure seamless integration into advanced technological systems.
