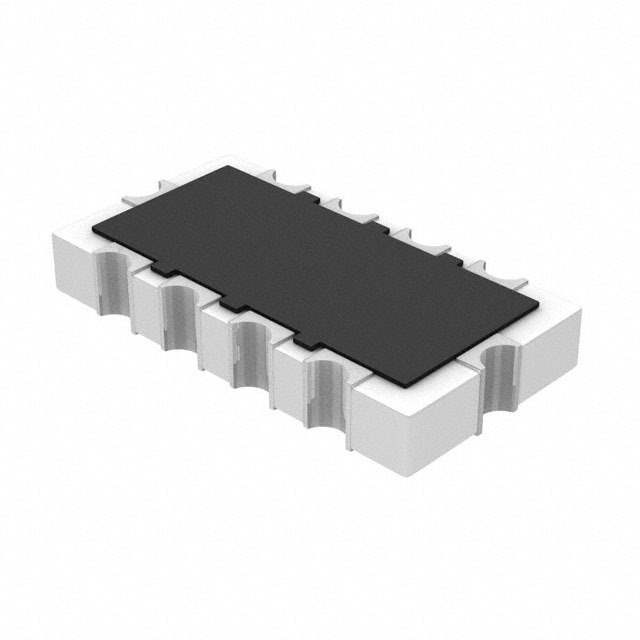

EZA-ST41AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST41AAAJ

Part No EZA-ST41AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 220 OHM/22PF SMD
Datasheet
EZA-ST41AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 220
Values R = 220 Ohms, C = 22pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 097196-EZA-ST41AAAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-ST41AAAJ CAD Model

Description

EZA-ST41AAAJ

Designed for excellence, the EZA-ST41AAAJ is a top-tier component tailored for high-performance applications. Its innovative features make it a leader in the electronics industry.

  • Renewable Energy Systems
  • Telecommunications
  • Data Center Equipment
Features and Benefits:
  • Sustainable Design: Reduces environmental impact while maintaining efficiency.
  • Advanced Technology: Incorporates the latest innovations for superior performance.
  • Highly Resilient: Built to endure challenging operational environments.
  • Versatile Usage: Suitable for a wide variety of applications.
