Same model may have multiple batches, images only for reference.

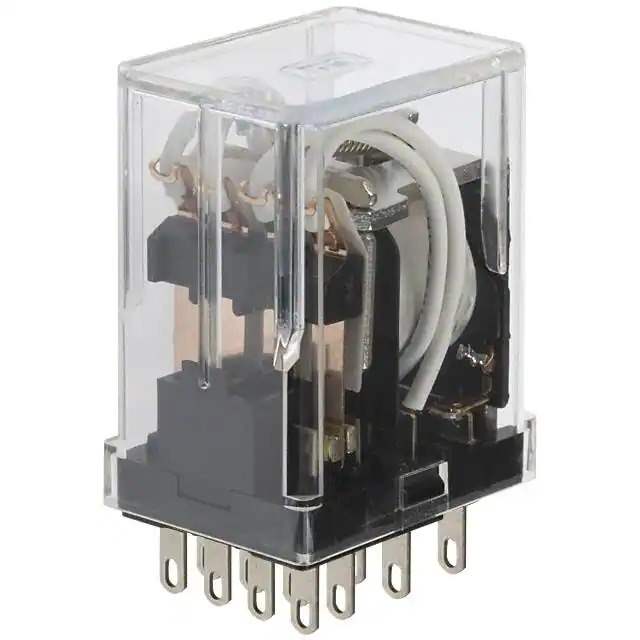

HC2-HTM-AC240V Real Image
Same model may have multiple batches, images only for reference.

HC2-HTM-AC240V

Part No HC2-HTM-AC240V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 7A 240V
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HC
Package Bulk
Product Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 240VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 7 A
Switching Voltage 250VAC - Max
Coil Current 5 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 192 VAC
Must Release Voltage 72 VAC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Base Product Number HC2-HTM-AC
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 873235-HC2-HTM-AC240V
Ultra Librarian 3D Model Ultra Librarian HC2-HTM-AC240V CAD Model

Description

The Panasonic 873235-HC2-HTM-AC240V is a power relay from the HC series.

  • Contact Form: Double-pole double-throw (DPDT)
  • Contact Rating: 7A
  • Coil Voltage: 240VAC
  • Coil Current: 5mA
  • Application: General-purpose
  • Operate Time: 10ms
  • Installation: Chassis mount
  • Temperature Range: -50°C to 70°C
  • Contact Material: Silver alloy
  • Switching Voltage: 250VAC
