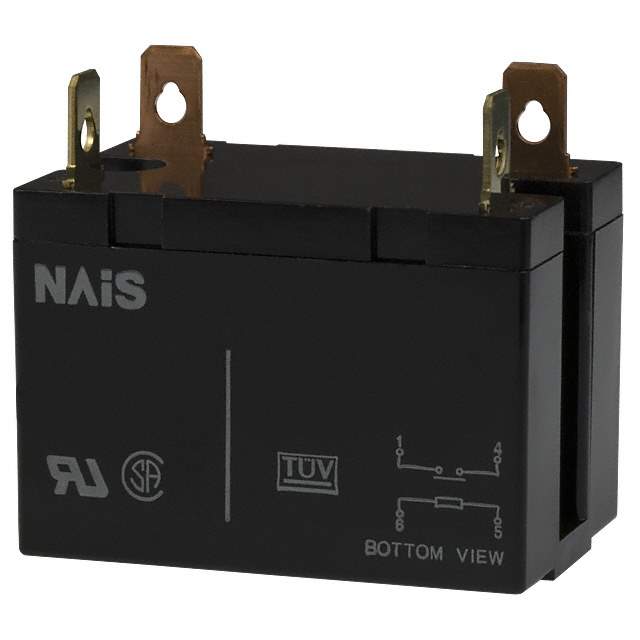

HE1AN-DC24V Real Image
Same model may have multiple batches, images only for reference.

HE1AN-DC24V

Part No HE1AN-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 24V  /  General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 300 Ohms
Base Product Number HE1AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-1642,HE1ANDC24V
Standard Package 20
Win Source Part Number 1011486-HE1AN-DC24V
Ultra Librarian 3D Model Ultra Librarian HE1AN-DC24V CAD Model

Description

The HE1AN-DC24V is a power relay that falls under the category of electronic components. This relay is manufactured by Panasonic Electric Works.

  • Type: General Purpose
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 30A
  • Mounting Type: Chassis Mount
  • Switching Voltage: 277VAC, 30VDC
  • Coil Resistance: 300 Ohms
  • Coil Current: 80 mA
  • Win Source Part Number: 1011486-HE1AN-DC24V
