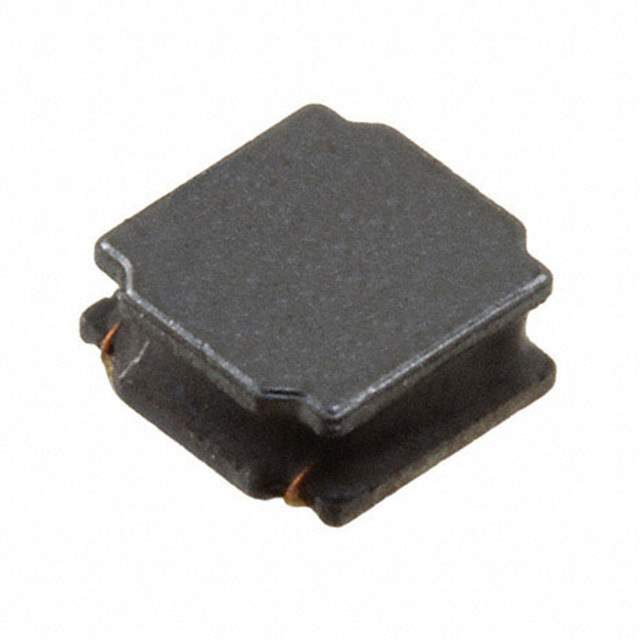

Same model may have multiple batches, images only for reference.

74404042022

Name: 74404042022
Brand: Wurth Electronics Inc
SKU: 1327777
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404042022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 2.2A 42 MOHM SMD / 2.2 µH Semi-Shielded Drum Core, Wirewound Inductor 2.2 A 42mOhm Nonstandard
Datasheet	74404042022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	3.4A
Shielding	Semi-Shielded
DC Resistance (DCR)	42mOhm
Frequency - Self Resonant	70MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	4018
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-5504-1,732-5504-6,732-5504-2
Standard Package	3,000
Win Source Part Number	1327777-74404042022
Ultra Librarian 3D Model	Ultra Librarian 74404042022 CAD Model

Alternative Products

Description

The Würth Elektronik 74404042022 is a fixed inductor that is semi-shielded with a drum core and wirewound type.

Size Dimension: 0.157” L x 0.157” W (4.00mm x 4.00mm)
Inductance: 2.2 µH
Seated Height: 0.071” (1.80mm)
Temperature Range: -40°C to 125°C
Supplier Device Package: 4018
Tolerance: ±20%
DC Resistance (DCR): 42mOhm
AEC-Q200 Rated: Yes
REACH Unaffected: Yes
ROHS3 Compliant: Yes
