Same model may have multiple batches, images only for reference.

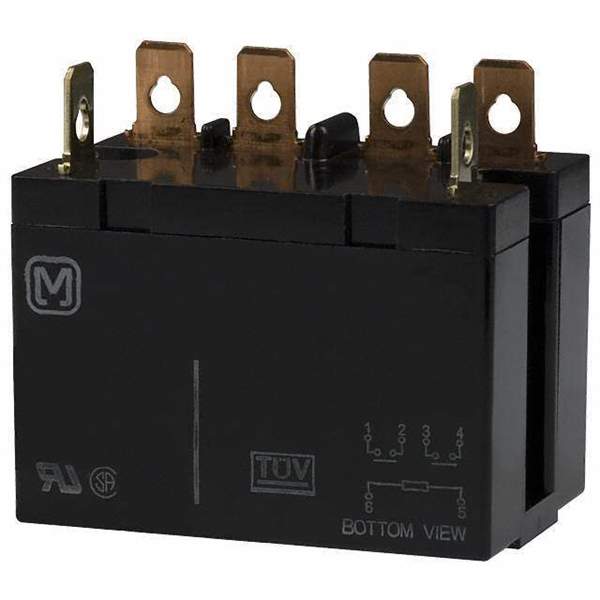

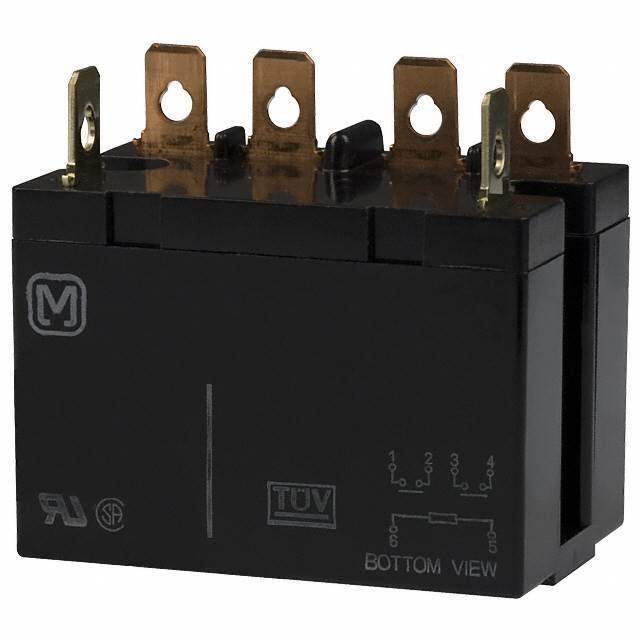

HE2AN-DC48V Real Image
Same model may have multiple batches, images only for reference.

HE2AN-DC48V

Part No HE2AN-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 25A 48V
Datasheet
HE2AN-DC48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 48VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 25A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 30ms
Release Time 10ms
Mounting Chassis Mount
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Coil Power 1.92 W
Coil Resistance 1.2 kOhms
Temperature Range - Operating -50°C to 55°C
Win Source Part Number 204734-HE2AN-DC48V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HE2AN-DC48V CAD Model

Description

The electronic component with Id 151786 is manufactured by Panasonic Electric Works. It is a general-purpose relay type product with DPST (2 Form A) contact form. The coil voltage of this product is 48VDC and the contact rating (current) is 25A. The switching voltage is 277VAC, 30VDC - Max. The supply and demand status of this product is limited.
