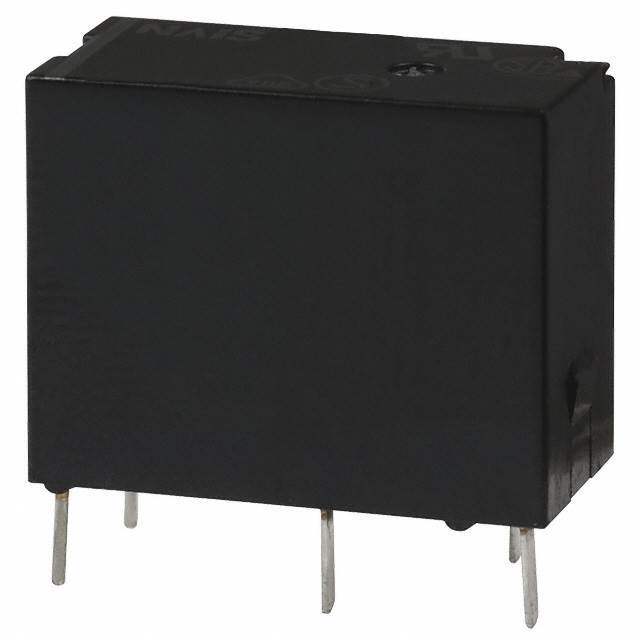

JK1AF-24V Real Image
Same model may have multiple batches, images only for reference.

JK1AF-24V

Part No JK1AF-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 24V
Datasheet
JK1AF-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 4ms
Release Time 2ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 205742-JK1AF-24V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JK1AF-24V CAD Model

Description

The Panasonic Electric Works 205742-JK1AF-24V is a general purpose non-latching relay with a coil voltage of 24VDC and a coil resistance of 2.88 kOhms.

  • Protection: Sealed Flux
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 250VAC and 110VDC
  • Contact Rating: 3A
  • Operate Time: 4ms
  • Release Time: 2ms
  • Turn On Voltage: 19.2 VDC
  • Turn Off Voltage: 1.2 VDC
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 70°C
  • Supply and Demand Status: Balanced
