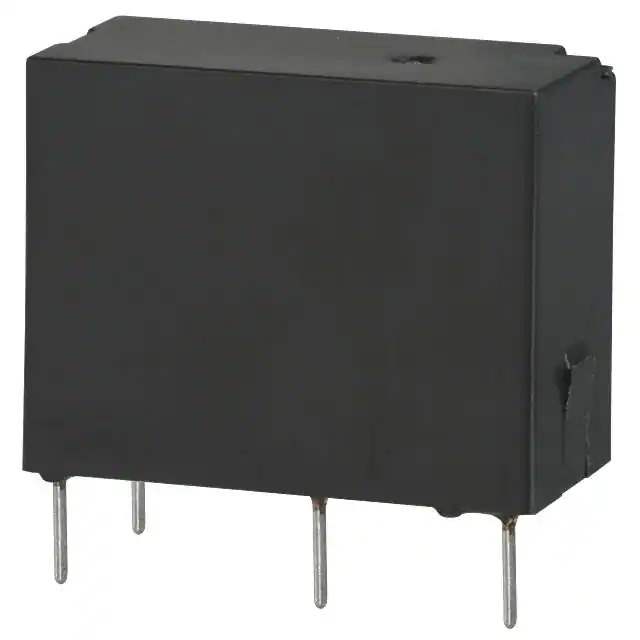

JQ1AP-12V

Name: JQ1AP-12V
Brand: Panasonic
SKU: 876232
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JQ1AP-12V
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	Panasonic
Series	JQ
Package	Bulk
Product Status	Obsolete
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	10 A
Switching Voltage	250VAC, 110VDC - Max
Coil Current	16.7 mA
Coil Type	Non Latching
Termination Style	PC Pin
Coil Insulation	Class E
Must Operate Voltage	9.6 VDC
Must Release Voltage	0.6 VDC
Operate Time	5 ms
Release Time	2 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver Alloy
Relay Type	General Purpose
Coil Resistance	720 Ohms
Base Product Number	JQ1AP
Standard Package	100 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	876232-JQ1AP-12V
Ultra Librarian 3D Model	Ultra Librarian JQ1AP-12V CAD Model

Alternative Products

Description

The JQ series relay from Panasonic, part number 876232-JQ1AP-12V, is a power relay designed for applications requiring over 2 Amps.

Termination Style: PC Pin
Package: Bulk
Contact Form: SPST-NO (1 Form A)
Contact Material: Silver Alloy
Coil Resistance: 720 Ohms
Coil Current: 16.7 mA
Coil Voltage: 12VDC
Contact Rating: 10 A
Switching Voltage: 250VAC, 110VDC
Operate Time: 5 ms
Release Time: 2 ms
Mounting Type: Through-Hole
Temperature Range: -40°C to 70°C
Application: General Purpose
