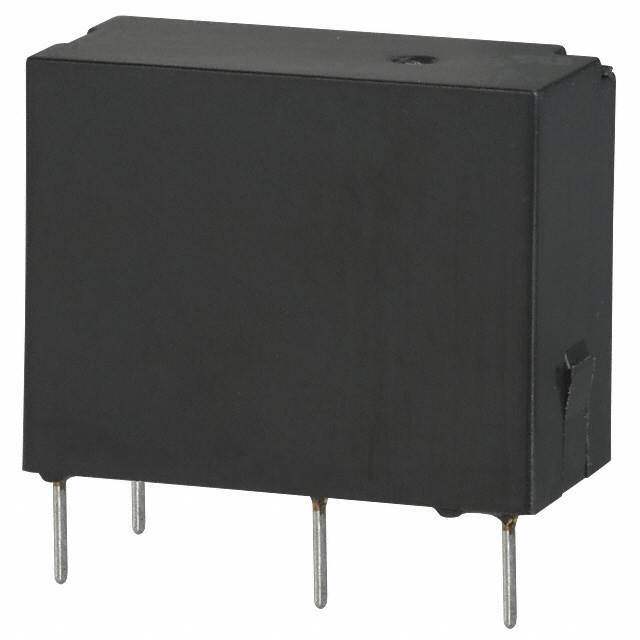

JQ1P-5V-F Real Image
Same model may have multiple batches, images only for reference.

JQ1P-5V-F

Part No JQ1P-5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 80mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 4 VDC
Turn Off Voltage (Min) 0.25 VDC
Operate Time 20ms
Release Time 10ms
Features Insulation - Class E
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 62.5 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 083520-JQ1P-5V-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JQ1P-5V-F CAD Model

Description

The Panasonic Electric Works 083520-JQ1P-5V-F is a general-purpose relay with a high popularity rate.

  • Manufacturer: Panasonic Electric Works
  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 5VDC
  • Contact Rating: 10A
  • Switching Voltage: 250VAC and 110VDC
  • Turn-On Voltage: 4VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Coil Resistance: 62.5 ohms
  • Coil Current: 80mA
  • Insulation Class: E features
  • Mounting: Through a hole
